IRS2110STRPBF
ActiveInfineon Technologies

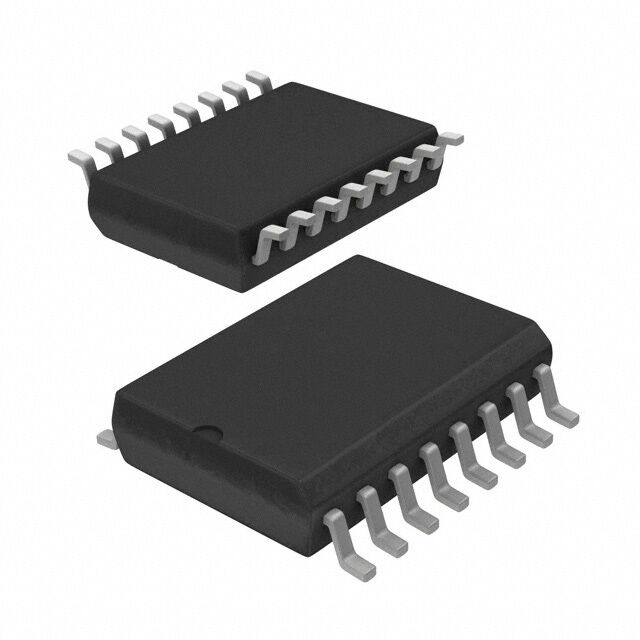

IC GATE DRVR HALF-BRIDGE 16SOIC
Deep-Dive with AI
Search across all available documentation for this part.
IRS2110STRPBF
ActiveInfineon Technologies
IC GATE DRVR HALF-BRIDGE 16SOIC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IRS2110STRPBF |
|---|---|
| Channel Type | Independent |
| Current - Peak Output (Source, Sink) [custom] | 2.5 A |
| Current - Peak Output (Source, Sink) [custom] | 2.5 A |
| Driven Configuration | Half-Bridge |
| Gate Type | IGBT, MOSFET |
| High Side Voltage - Max (Bootstrap) [Max] | 500 V |
| Input Type | Non-Inverting |
| Logic Voltage - VIL, VIH [Max] | 9.5 V |
| Logic Voltage - VIL, VIH [Min] | 6 V |
| Mounting Type | Surface Mount |
| Number of Drivers | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SOIC |
| Package / Case [x] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Rise / Fall Time (Typ) [custom] | 25 ns |
| Rise / Fall Time (Typ) [custom] | 17 ns |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply [Max] | 20 V |
| Voltage - Supply [Min] | 10 VDC |
