T4031017041-000
ActiveTE Connectivity AMP Connectors

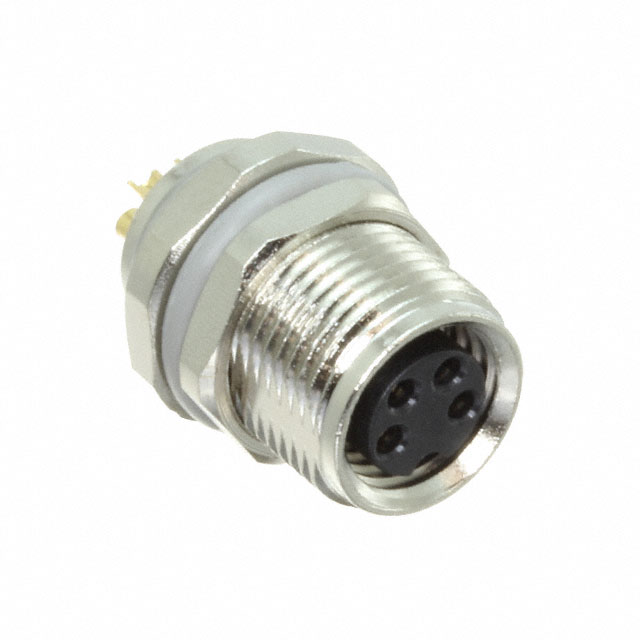

CONN RCPT FMALE 4POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4031017041-000
ActiveTE Connectivity AMP Connectors
CONN RCPT FMALE 4POS SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T4031017041-000 |
|---|---|
| Applications | Telecommunications, Automation Control, Industrial |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Current Rating (Amps) | 3 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | M8-4 |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.89 | |
| 10 | $ 7.37 | |||
| 25 | $ 6.84 | |||
| 50 | $ 6.46 | |||
| 100 | $ 6.11 | |||
| 250 | $ 5.67 | |||
| 500 | $ 5.36 | |||
| 1000 | $ 5.07 | |||
T40310 Series
CONN RCPT FMALE 4POS SOLDER CUP
| Part | Orientation | Applications | Number of Positions | Color | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Voltage Rating | Shell Size - Insert | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Material | Primary Material | Ingress Protection | Connector Type | Current Rating (Amps) | Shell Finish | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4031017041-000 | A | Automation Control, Industrial, Telecommunications | 4 | Silver | 85 °C | -40 °C | Bulkhead - Front Side Nut | 30 VDC | M8-4 | 3 µin | 0.076 µm | Copper Alloy | Metal | IP67 - Dust Tight, Waterproof | Receptacle, Female Sockets | 3 A | Nickel | Gold |
Description
General part information
T40310 Series
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
