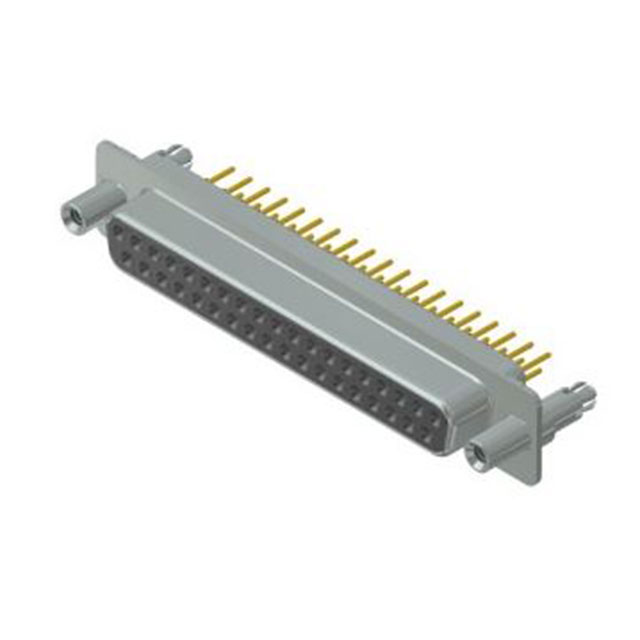

164A16699X

Active

Amphenol CONEC

CONN D-SUB RCPT 37POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

164A16699X

Active

Amphenol CONEC

CONN D-SUB RCPT 37POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	164A16699X

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder
Voltage Rating	125 VDC

164A166 Series

Part	Contact Material	Material Flammability Rating	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Connector Style	Color	Dielectric Material	Termination	Contact Finish	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Rows	Connector Type	Flange Feature	Shell Size, Connector Layout	Contact Finish Thickness	Shell Size, Connector Layout
Amphenol CONEC 164A16669X	Copper Alloy	UL94 V-0	Signal	8 çin	0.203 çm	Through Hole	D-Sub	Black	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Gold	9	DE E	1	7.5 A	-55 °C	125 °C	125 VDC	2	Receptacle Female Sockets	4-40
Amphenol CONEC 164A16649X	Copper Alloy	UL94 V-0	Signal	8 çin	0.203 çm	Through Hole	D-Sub	Black	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Gold	37			7.5 A	-55 °C	125 °C	125 VDC	2	Receptacle Female Sockets	Board Side (M3)	4 (DC C)
Amphenol CONEC 164A16699X	Copper Alloy	UL94 V-0	Signal			Through Hole	D-Sub	Black	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Gold	37			7.5 A	-55 °C	125 °C	125 VDC	2	Receptacle Female Sockets	4-40	4 (DC C)	Flash
Amphenol CONEC 164A16689X	Copper Alloy	UL94 V-0	Signal			Through Hole	D-Sub	Black	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Gold		B DB	3	7.5 A	-55 °C	125 °C	125 VDC	2	Receptacle Female Sockets	4-40		Flash
Amphenol CONEC 164A16669X-S			Signal			Through Hole	D-Sub		Polyester Glass Filled	Solder	Gold	9	DE E	1		-55 °C	125 °C		2	Receptacle Female Sockets	4-40
Amphenol CONEC 164A16679X	Copper Alloy	UL94 V-0	Signal			Through Hole	D-Sub	Black	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Gold	15			7.5 A	-55 °C	125 °C	125 VDC	2	Receptacle Female Sockets	4-40		Flash	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.48
		10	$ 14.28
		25	$ 13.54
		50	$ 13.34
		100	$ 11.77
		250	$ 10.99
		500	$ 10.75

Description

General part information

164A166 Series

37 Position D-Sub Receptacle, Female Sockets Connector
