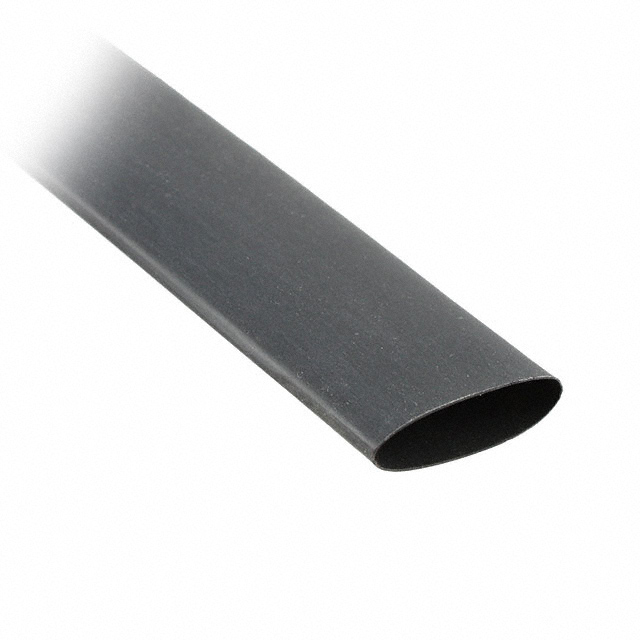

RNF-150-3/8-0-SP

Obsolete

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING 1=25FT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RNF-150-3/8-0-SP

Obsolete

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING 1=25FT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RNF-150-3/8-0-SP

Color	Black
Features	Flame Retardant, Strain Resistant, Abrasion Resistant, Solvent Resistant, Chemical Resistant
Inner Diameter - Recovered [diameter]	4.75 mm
Inner Diameter - Recovered [diameter]	0.187 in
Inner Diameter - Supplied [diameter]	0.375 in
Inner Diameter - Supplied [diameter]	9.53 mm
Length	196.8 ft, 82 ft
Length	60 m, 25 m
Length [x]	1 m
Length [x]	3.28 ft
Material	Fluoropolymer, Irradiated
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.3 mm
Recovered Wall Thickness	0.012 in
Shelf Life	144 Months
Shrink Temperature	110 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

RNF-150 Series

Part	Type	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Recovered Wall Thickness	Recovered Wall Thickness	Material	Features	Shrink Temperature	Color	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life	Inner Diameter - Recovered	Inner Diameter - Recovered	Length	Length	Inner Diameter - Recovered [diameter]	Length	Spool Size	Spool Size	Inner Diameter - Supplied [diameter]
TE Connectivity Raychem Cable Protection RNF-150-1/16-0-SP	Tubing Flexible	2 to 1	0.79 mm	0.031 in	899.8 m	2952 ft	0.01 in	0.25 mm	Fluoropolymer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	110 °C	Black	-55 °C	150 °C	0.063 in	1.6 mm	144 Months
TE Connectivity Raychem Cable Protection RNF-150-3/16-0-SP	Tubing Flexible	2 to 1					0.01 in	0.25 mm	Fluoropolymer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	110 °C	Black	-55 °C	150 °C	0.187 in	4.75 mm	144 Months	2.36 mm	0.093 in	164 ft	50 m
TE Connectivity Raychem Cable Protection RNF-150-3/64-0-SP	Tubing Flexible	2 to 1	0.023 in		899.8 m	2952 ft	0.01 in	0.25 mm	Fluoropolymer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	110 °C	Black	-55 °C	150 °C	0.046 in	1.17 mm	144 Months					0.58 mm
TE Connectivity Raychem Cable Protection RNF-150-3/8-0-SP	Tubing Flexible	2 to 1	4.75 mm	0.187 in	1 m	3.28 ft	0.012 in	0.3 mm	Fluoropolymer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	110 °C	Black	-55 °C	150 °C	0.375 in	9.53 mm	144 Months			82 ft 196.8 ft	25 m 60 m
TE Connectivity Raychem Cable Protection RNF-150-3/4-0-SP	Tubing Flexible	2 to 1	9.5 mm	0.374 "	3 m	9.84 ft	0.017 in	0.43 mm	Fluoropolymer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	110 °C	Black	-55 °C	150 °C			144 Months			246.1 ft 492.1 ft	75 m 150 m
TE Connectivity Raychem Cable Protection RNF-150-3/32-0-SP	Tubing Flexible	2 to 1	1.19 mm	0.047 in	30.5 m	100 ft	0.01 in	0.25 mm	Fluoropolymer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	110 °C	Black	-55 °C	150 °C		0.093 in	144 Months			25 ft 50 ft	7.6 m 15.2 m		Enter Number of Meters in Order Quantity	492.1 '	150 m	2.36 mm
TE Connectivity Raychem Cable Protection RNF-150-1/4-0-SP	Tubing Flexible	2 to 1		0.125 in	1 m 3 m 5 m 30 m	3.28 ft 9.84 ft 16.4 ft 98.4 ft	0.012 in	0.3 mm	Fluoropolymer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	110 °C	Black	-55 °C	150 °C	0.25 in	6.35 mm	144 Months	3.18 mm		5 ' 25 ft 32.8 ' 492.1 ft	1.52 m 7.6 m 10 m 150 m		Enter Number of Meters in Order Quantity	246.1 ft	75 m
TE Connectivity Raychem Cable Protection RNF-150-1/2-9-SP	Tubing Flexible	2 to 1	6.35 mm	0.25 in			0.012 in	0.3 mm	Fluoropolymer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	110 °C	White	-55 °C	150 °C	0.5 in	12.7 mm	144 Months
TE Connectivity Raychem Cable Protection RNF-150-1-0-SP	Tubing Flexible	2 to 1	12.7 mm	0.5 in			0.019 "	0.48 mm	Fluoropolymer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	110 °C	Black	-55 °C	150 °C	1 in	25.4 mm	144 Months			3000 "	76.2 m
TE Connectivity Raychem Cable Protection RNF-150-3/8-9-SP	Tubing Flexible	2 to 1	4.75 mm	0.187 in			0.012 in	0.3 mm	Fluoropolymer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	110 °C	White	-55 °C	150 °C	0.375 in	9.53 mm	144 Months

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 438.75

Description

General part information

RNF-150 Series

Heat Shrink Tubing, Flexible 0.375" (9.53mm) 2 to 1 Black 82.0' (25.0m)
