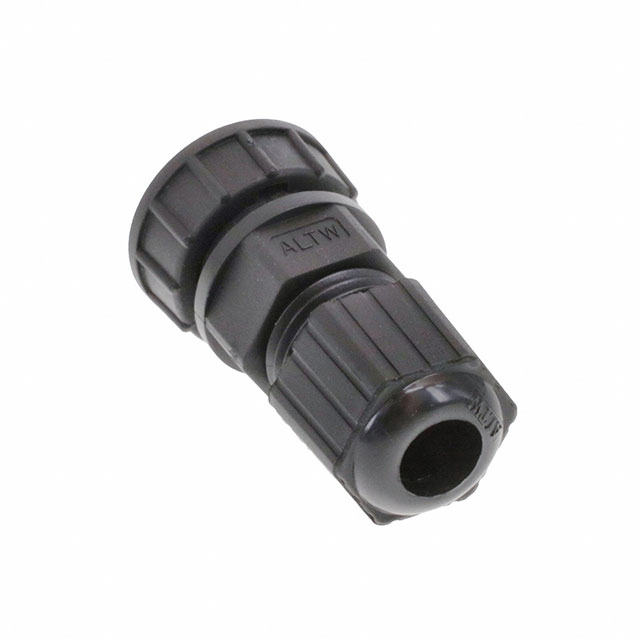

DC-02BFMB-LL7001

Obsolete

Amphenol LTW

CIRCULAR LARGE SIZE FIELD INSTAL

Search across all available documentation for this part.

Obsolete

Amphenol LTW

CIRCULAR LARGE SIZE FIELD INSTAL

Technical Specifications

Parameters and characteristics for this part

Specification	DC-02BFMB-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [custom]	10.8 mm
Cable Opening [Max] [custom]	0.425 in
Cable Opening [Min] [custom]	0.217 in
Cable Opening [Min] [custom]	5.5 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded
Termination	Screw

Part	Cable Opening [custom]	Cable Opening [custom]	Backshell Material, Plating	Number of Positions	Color	Termination	Connector Type	Shell Size - Insert	Shielding	Insert Material	Orientation	Contact Finish - Mating	Primary Material	Mounting Type	Ingress Protection	Voltage Rating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Features	Shell Material	Fastening Type	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Amphenol LTW DC-02BFMB-QL8MPP	10 mm 12 mm	0.394 in 0.472 in	Thermoplastic	2	Black	Screw	Male Pins Plug	D	Unshielded	Thermoplastic	Keyed	Silver	Plastic	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	300 VDC	Copper Alloy	-40 °C	105 ░C	20 A	Backshell
Amphenol LTW DC-02BFMB-LL7001			Nylon Polyamide (PA)	2	Black	Screw	Male Pins Plug	D	Unshielded	Polyamide (PA) Nylon Glass Filled	Keyed	Gold	Plastic	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof		Copper Alloy	-40 °C	105 ░C	20 A	Backshell Coupling Nut	Glass Filled Nylon Polyamide (PA)	Bayonet Lock	0.217 in	5.5 mm	10.8 mm	0.425 in
Amphenol LTW DC-02BFMB-QL8LPP			Thermoplastic	2	Black	Screw	Male Pins Plug	D	Unshielded	Thermoplastic	Keyed	Silver	Plastic	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	300 VDC	Copper Alloy	-40 °C	105 ░C	20 A	Backshell		Push-Pull	0.472 in	12 mm	14 mm	0.551 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Male Pins Screw
