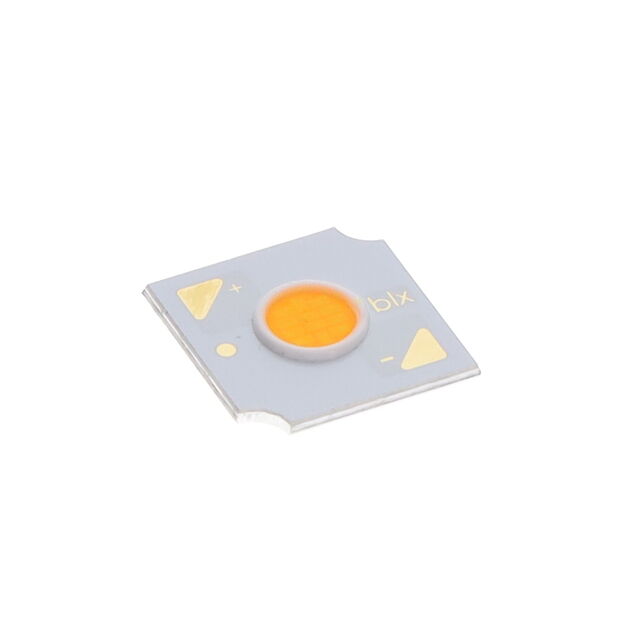

BXRH-25E0600-A-83

Active

BRIDGELUX

LED COB V4 HD WARM WHT SQU 2500K

Search across all available documentation for this part.

Active

BRIDGELUX

LED COB V4 HD WARM WHT SQU 2500K

Technical Specifications

Parameters and characteristics for this part

Specification	BXRH-25E0600-A-83

CCT (K)	2500 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	300 mA
Current - Test	175 mA
Height [z]	1.63 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	4.8 mm
Size / Dimension [x]	12.5 mm
Size / Dimension [y]	12.5 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	36.6 V

LED COB V4 HD WARM WHT SQU 2500K

Part	Type	Lens Type	Color	Current - Test	CCT (K)	Voltage - Forward (Vf) (Typ)	Viewing Angle	Light Emitting Surface (LES) [diameter]	Configuration	CRI (Color Rendering Index)	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Height [z]
BRIDGELUX BXRH-25E0600-A-83	Chip On Board (COB)	Flat	Warm, White	175 mA	2500 K	36.6 V	120 °	4.8 mm	Square	80	300 mA	12.5 mm	12.5 mm	1.63 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 V4 HD LED Array White, Warm Square
