155220-5303-RB

Active

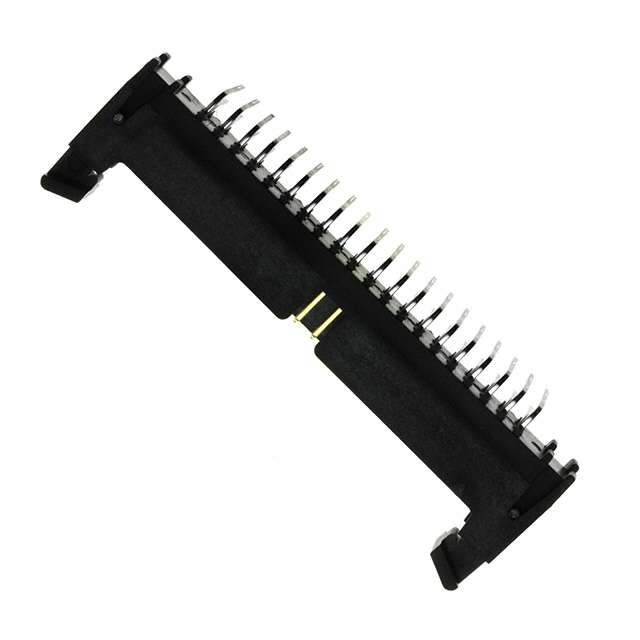

CONN HEADER R/A 20POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

155220-5303-RB

Active

CONN HEADER R/A 20POS 2MM

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	155220-5303-RB	155220 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	10 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.25 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	0.15 in	0.15 in
Contact Length - Mating	3.81 mm	3.81 mm
Contact Length - Post	3.94 mm	2.84 - 3.94 mm
Contact Length - Post	0.155 "	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks
Features	Keying Slot	Pick and Place, Keying Slot
Insulation Color	Black	Black
Insulation Height	6.28 mm	6.28 - 10.8 mm
Insulation Height	0.247 in	0.247 - 0.425 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Surface Mount, Through Hole, Through Hole, Right Angle
Number of Positions	20	20
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

155220 Series

CONN HEADER SMD 20POS 2MM

Part	Connector Type	Fastening Type	Contact Finish - Mating	Shrouding	Contact Material	Insulation Color	Number of Positions Loaded	Number of Rows	Termination	Style	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Type	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Contact Length - Post	Contact Length - Post
3M 155220-2300-RB-WE	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Surface Mount	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot, Pick and Place	30 Áin	0.76 Ám	0.079 in	2 mm	0.15 in	3.81 mm	0.425 in	10.8 mm	UL94 V-0
3M 155220-6202-RA	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Through Hole	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot	10 çin	0.25 çm	0.079 in	2 mm	0.15 in	3.81 mm	0.425 in	10.8 mm	UL94 V-0	2.84 mm	0.112 in
3M 155220-5303-RB	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Through Hole, Right Angle	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot	30 Áin	0.76 Ám	0.079 in	2 mm	0.15 in	3.81 mm	0.247 in	6.28 mm	UL94 V-0	3.94 mm	0.155 "
3M 155220-6303-RA	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Through Hole	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot	10 çin	0.25 çm	0.079 in	2 mm	0.15 in	3.81 mm	0.425 in	10.8 mm	UL94 V-0	3.94 mm	0.155 "
3M 155220-2200-RB-WE	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Surface Mount	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot, Pick and Place	30 Áin	0.76 Ám	0.079 in	2 mm	0.15 in	3.81 mm	0.425 in	10.8 mm	UL94 V-0
3M 155220-6202-RB	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Through Hole	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot	30 Áin	0.76 Ám	0.079 in	2 mm	0.15 in	3.81 mm	0.425 in	10.8 mm	UL94 V-0	2.84 mm	0.112 in
3M 155220-5403-RB	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Through Hole, Right Angle	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot	30 Áin	0.76 Ám	0.079 in	2 mm	0.15 in	3.81 mm	0.247 in	6.28 mm	UL94 V-0	3.94 mm	0.155 "
3M 155220-2200-RB	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Surface Mount	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot	30 Áin	0.76 Ám	0.079 in	2 mm	0.15 in	3.81 mm	0.425 in	10.8 mm	UL94 V-0
3M 155220-2300-RB	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Surface Mount	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot	30 Áin	0.76 Ám	0.079 in	2 mm	0.15 in	3.81 mm	0.425 in	10.8 mm	UL94 V-0
3M 155220-5203-RB	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Through Hole, Right Angle	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot	30 Áin	0.76 Ám	0.079 in	2 mm	0.15 in	3.81 mm	0.247 in	6.28 mm	UL94 V-0	3.94 mm	0.155 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

155220 Series

Connector Header Through Hole, Right Angle 20 position 0.079" (2.00mm)
