155220-2200-RB

Active

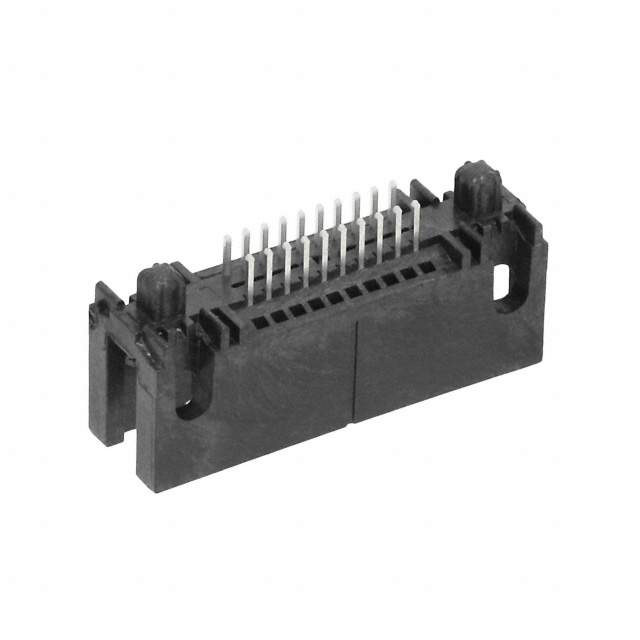

CONN HEADER SMD 20POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

155220-2200-RB

Active

CONN HEADER SMD 20POS 2MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	945	$ 6.54

Description

General part information

155220 Series

Connector Header Surface Mount 20 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	155220-2200-RB	155220 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	10 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.25 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	0.15 in	0.15 in
Contact Length - Mating	3.81 mm	3.81 mm
Contact Length - Post	-	2.84 - 3.94 mm
Contact Length - Post	-	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks
Features	Keying Slot	Pick and Place, Keying Slot
Insulation Color	Black	Black
Insulation Height	0.425 in	0.247 - 0.425 in
Insulation Height	10.8 mm	6.28 - 10.8 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount, Through Hole, Through Hole, Right Angle
Number of Positions	20	20
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

155220 Series

CONN HEADER SMD 20POS 2MM

Part	Connector Type	Fastening Type	Contact Finish - Mating	Shrouding	Contact Material	Insulation Color	Number of Positions Loaded	Number of Rows	Termination	Style	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Type	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Contact Length - Post	Contact Length - Post
3M 155220-2300-RB-WE	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Surface Mount	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot, Pick and Place	30 Áin	0.76 Ám	0.079 in	2 mm	0.15 in	3.81 mm	0.425 in	10.8 mm	UL94 V-0
3M 155220-6202-RA	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Through Hole	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot	10 çin	0.25 çm	0.079 in	2 mm	0.15 in	3.81 mm	0.425 in	10.8 mm	UL94 V-0	2.84 mm	0.112 in
3M 155220-5303-RB	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Through Hole, Right Angle	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot	30 Áin	0.76 Ám	0.079 in	2 mm	0.15 in	3.81 mm	0.247 in	6.28 mm	UL94 V-0	3.94 mm	0.155 "
3M 155220-6303-RA	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Through Hole	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot	10 çin	0.25 çm	0.079 in	2 mm	0.15 in	3.81 mm	0.425 in	10.8 mm	UL94 V-0	3.94 mm	0.155 "
3M 155220-2200-RB-WE	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Surface Mount	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot, Pick and Place	30 Áin	0.76 Ám	0.079 in	2 mm	0.15 in	3.81 mm	0.425 in	10.8 mm	UL94 V-0
3M 155220-6202-RB	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Through Hole	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot	30 Áin	0.76 Ám	0.079 in	2 mm	0.15 in	3.81 mm	0.425 in	10.8 mm	UL94 V-0	2.84 mm	0.112 in
3M 155220-5403-RB	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Through Hole, Right Angle	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot	30 Áin	0.76 Ám	0.079 in	2 mm	0.15 in	3.81 mm	0.247 in	6.28 mm	UL94 V-0	3.94 mm	0.155 "
3M 155220-2200-RB	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Surface Mount	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot	30 Áin	0.76 Ám	0.079 in	2 mm	0.15 in	3.81 mm	0.425 in	10.8 mm	UL94 V-0
3M 155220-2300-RB	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Surface Mount	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot	30 Áin	0.76 Ám	0.079 in	2 mm	0.15 in	3.81 mm	0.425 in	10.8 mm	UL94 V-0
3M 155220-5203-RB	Header	Latch Lock/Eject Hooks	Gold	Shrouded - 4 Wall	Copper Alloy	Black	All	2	Solder	Board to Cable/Wire	105 ░C	-55 °C	1.25 A	Male Pin	Through Hole, Right Angle	200 µin	5.08 µm	Tin	20	0.079 in	2 mm	Square	Keying Slot	30 Áin	0.76 Ám	0.079 in	2 mm	0.15 in	3.81 mm	0.247 in	6.28 mm	UL94 V-0	3.94 mm	0.155 "
