3C-R(40)

Hirose Electric Co Ltd

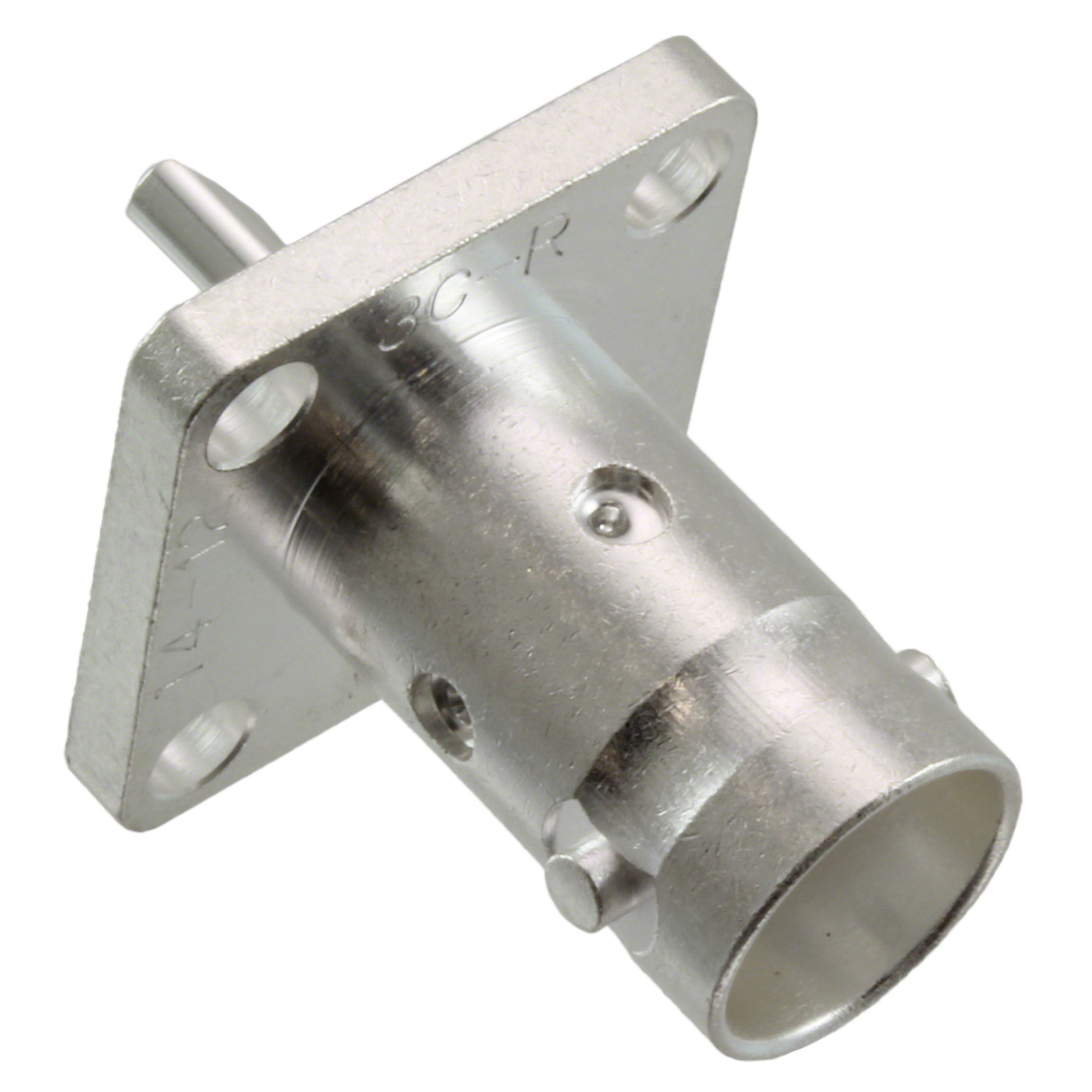

CONN BNC RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Hirose Electric Co Ltd

CONN BNC RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3C-R(40)	3C-R Series

	-	-
Body Finish	Silver	Silver
Body Material	Brass	Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Silver	Silver
Connector Style	BNC	BNC
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder Cup	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	1 GHz	1 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mating Cycles	1000	1000
Mounting Feature	Flange	Flange
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Solder	Solder

CONN RF COAX RECEPTACLE

Part	Mating Cycles	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Frequency - Max [Max]	Housing Color	Mounting Feature	Center Contact Material	Impedance	Body Finish	Shield Termination	Connector Style	Fastening Type	Center Contact Plating	Contact Termination	Connector Type	Number of Ports
Hirose Electric Co Ltd 3C-R(50)
Hirose Electric Co Ltd 3C-R(44)
Hirose Electric Co Ltd 3C-R(40)	1000	Polytetrafluoroethylene (PTFE)	85 °C	-55 °C	Brass	1 GHz	Silver	Flange	Beryllium Copper	50 Ohms	Silver	Solder	BNC	Bayonet Lock	Silver	Solder Cup	Female Socket, Jack	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
