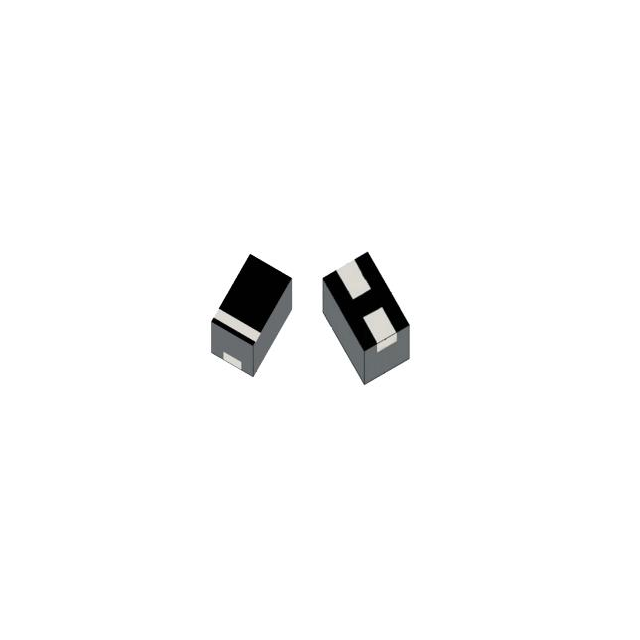

MSWSE-020-05
ActiveMACOM Technology Solutions
RF DIODE PIN 250V 0503
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSWSE-020-05
ActiveMACOM Technology Solutions
RF DIODE PIN 250V 0503
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSWSE-020-05 |
|---|---|
| Capacitance @ Vr, F | 0.65 pF |
| Current - Max [Max] | 500 mA |
| Diode Type | PIN - Single |
| Operating Temperature | 175 °C |
| Resistance @ If, F | 500 mOhm |
| Supplier Device Package | 0503 |
| Voltage - Peak Reverse (Max) [Max] | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.37 | |
| 10 | $ 4.90 | |||
| 25 | $ 4.53 | |||
| 100 | $ 4.12 | |||
| 250 | $ 4.10 | |||
| Digi-Reel® | 1 | $ 6.37 | ||
| 10 | $ 4.90 | |||
| 25 | $ 4.53 | |||
| 100 | $ 4.12 | |||
| 250 | $ 4.10 | |||
| Tape & Reel (TR) | 500 | $ 3.81 | ||
| 1000 | $ 3.72 | |||
| 1500 | $ 3.67 | |||
| 2500 | $ 3.61 | |||
Description
General part information
MSWSE-020 Series
RF Diode PIN - Single 250V 500 mA 0503
