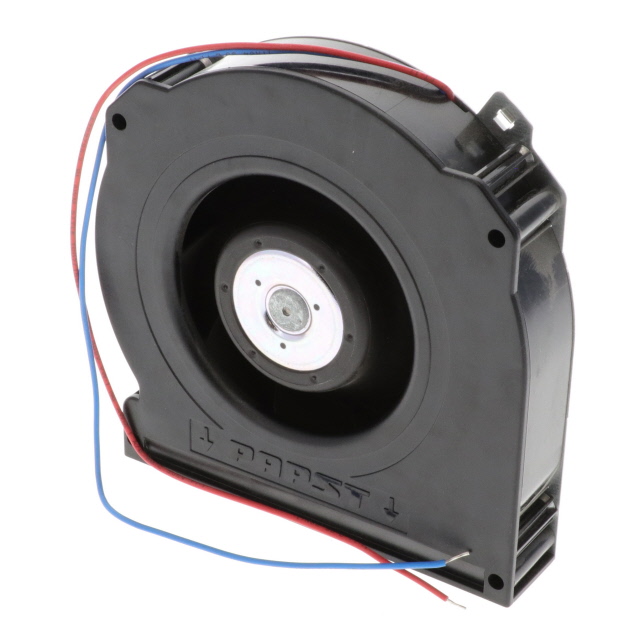

RLF100-11/18
Activeebm-papst Inc.
FAN BLOWER CF 127X25.4MM 48VDC
Deep-Dive with AI
Search across all available documentation for this part.
RLF100-11/18
Activeebm-papst Inc.
FAN BLOWER CF 127X25.4MM 48VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RLF100-11/18 |
|---|---|
| Air Flow | 37.7 CFM |
| Air Flow | 1.06 mł/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Fan Type | Blower, Centrifugal |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 80000 Hrs |
| Material - Blade | Plastic, Fiberglass Reinforced |
| Material - Frame | Steel, Fiberglass Reinforced, Plastic |
| Noise | 64 dB(A) |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Max] | 75 °C |
| Operating Temperature [Min] | -20 C |
| Operating Temperature [Min] | -20 °C |
| RPM | 5100 RPM |
| Size / Dimension | Square/Rounded |
| Size / Dimension [x] | 5 in |
| Size / Dimension [z] | 5 in |
| Termination | 2 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 60 V |
| Voltage Range [Min] | 36 VDC |
| Width [y] | 25.4 mm |
RLF100 Series
| Part | Features | Static Pressure | Static Pressure | Material - Frame | Approval Agency | Noise | Bearing Type | Voltage - Rated [custom] | Fan Type | Termination | RPM | Voltage Range [Min] | Voltage Range [Max] | Air Flow | Air Flow | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Weight | Weight | Lifetime @ Temp. | Material - Blade | Current Rating (Amps) | Width [y] | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension | Ingress Protection | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ebm-papst Inc. | PWM Control Speed Sensor (Tach) | 675 Pa | 2.71 in H2O | Glass Filled Plastic | CCC CE CSA UL VDE | 60 dB(A) | Ball | 48 VDC | Blower Centrifugal | 4 Wire Leads | 6400 RPM | 43 VDC | 53 VDC | 37.7 CFM | 1.06 mł/min | -20 °C | 70 °C | -20 C | 70 °C | 0.71 lb | 322.05 g | 72500 Hrs | Plastic Fiberglass Reinforced | 360 mA | 25.4 mm | 17 W | 5 in | 5 in | Square/Rounded | ||
ebm-papst Inc. | Fiberglass Reinforced Plastic Steel | CE CSA UL VDE | 64 dB(A) | Ball | 48 VDC | Blower Centrifugal | 2 Wire Leads | 5100 RPM | 36 VDC | 60 V | 37.7 CFM | 1.06 mł/min | -20 °C | 75 °C | -20 C | 75 ░C | 80000 Hrs | Plastic Fiberglass Reinforced | 25.4 mm | 5 in | 5 in | Square/Rounded | IP54 - Dust Protected Water Resistant | ||||||||
ebm-papst Inc. | Locked Rotor Protection Speed Sensor (Tach) | Plastic Fiberglass Reinforced | Ball | Blower Centrifugal | 3 Wire Leads | 5100 RPM | 16 VDC | 30 V | 37.7 CFM | 1.06 mł/min | -20 °C | 75 °C | -20 C | 75 ░C | 80000 Hrs | Plastic Fiberglass Reinforced | 25.4 mm | 8 W | 5 in | 5 in | Square/Rounded | IP54 - Dust Protected Water Resistant | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 95.43 | |
| 10 | $ 85.77 | |||
| 25 | $ 84.56 | |||
| 50 | $ 79.12 | |||
| 100 | $ 77.31 | |||
Description
General part information
RLF100 Series
Fan Blower, Centrifugal 48VDC Square/Rounded - 127mm L x 127mm H Ball 37.7 CFM (1.06m³/min) 2 Wire Leads
