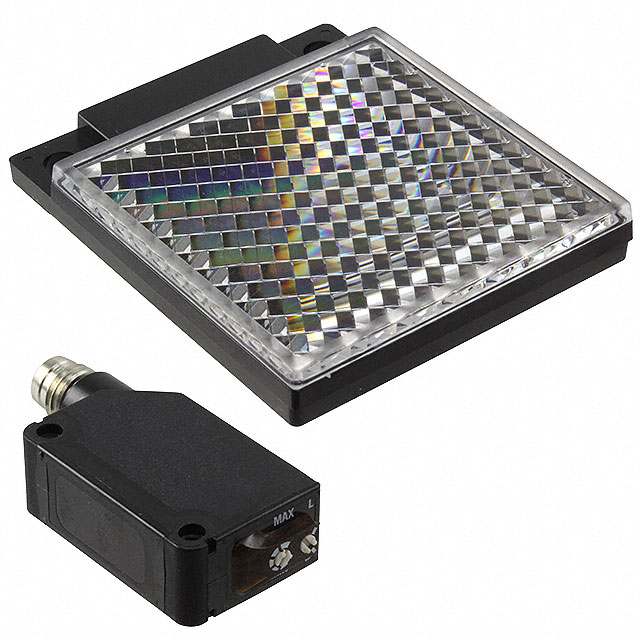

CX-482-P-Z

Active

Panasonic Industrial Automation Sales

SENSOR RETROREFLECTIVE 200CM PNP

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

SENSOR RETROREFLECTIVE 200CM PNP

Technical Specifications

Parameters and characteristics for this part

Part	Output Configuration	Light Source	Connection Method	Voltage - Supply [Min]	Voltage - Supply [Max]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	Sensing Distance	Sensing Distance	Sensing Distance	Sensing Method	Cable Length	Cable Length
Panasonic Industrial Automation Sales CX-482-P-J	PNP - Open Collector	Infrared	4POS Connector M12	12 V	24 V	IP67	55 °C	-25 °C	1 ms	2 m	78.7 in	6.6 ft	Retroreflective
Panasonic Industrial Automation Sales CX-482-Z	NPN - Open Collector	Infrared	4POS Connector M8	12 V	24 V	IP67	55 °C	-25 °C	1 ms	2 m	78.7 in	6.6 ft	Retroreflective
Panasonic Industrial Automation Sales CX-482-P-Z	PNP - Open Collector	Infrared	4POS Connector M8	12 V	24 V	IP67	55 °C	-25 °C	1 ms	2 m	78.7 in	6.6 ft	Retroreflective
Panasonic Industrial Automation Sales CX-482-P-C05	PNP - Open Collector	Infrared	Cable	12 V	24 V	IP67	55 °C	-25 °C	1 ms	2 m	78.7 in	6.6 ft	Retroreflective	19.5 in	50 cm
Panasonic Industrial Automation Sales CX-482-C5	NPN - Open Collector	Infrared	Cable	12 V	24 V	IP67	55 °C	-25 °C	1 ms	2 m	78.7 in	6.6 ft	Retroreflective	196.85 in	5 m
Panasonic Industrial Automation Sales CX-482-C05	NPN - Open Collector	Infrared	Cable	12 V	24 V	IP67	55 °C	-25 °C	1 ms	2 m	78.7 in	6.6 ft	Retroreflective	19.5 in	50 cm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Retroreflective Optical Sensor 78.7" (200cm) 6.6' PNP - Open Collector

Technical documentation and resources

No documents available
