MNIM3-1.0
ActiveEssentra Access Solutions

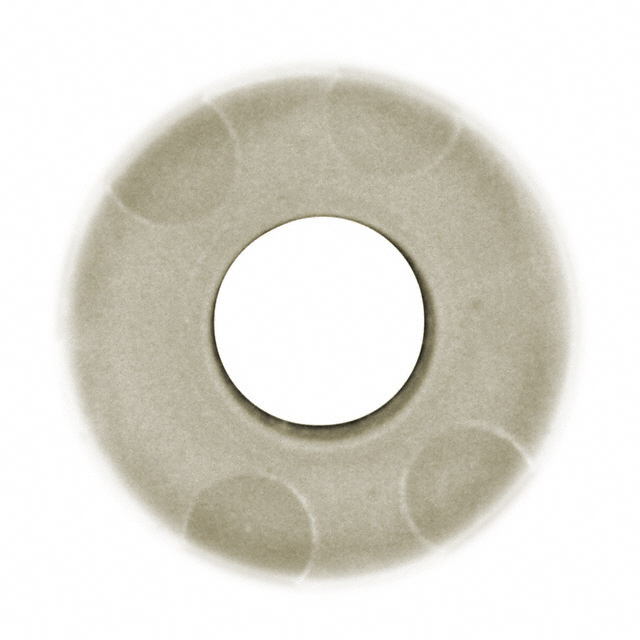

WASHER SHOULDER M3 NYLON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MNIM3-1.0 |
|---|---|
| Diameter - Inside [diameter] | 0.122 in |
| Diameter - Inside [diameter] | 3.1 mm |
| Diameter - Outside [diameter] | 0.28 in |
| Diameter - Outside [diameter] | 7.11 mm |
| Diameter - Shoulder [diameter] | 0.145 in |
| Diameter - Shoulder [diameter] | 3.68 mm |
| Length - Below Head | 0.99 mm |
| Length - Below Head | 0.039 in |
| Material | Nylon |
| Thickness - Overall | 0.078 in |
| Thickness - Overall | 1.98 mm |
| Thread/Screw/Hole Size | M3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.29 | |
| 5 | $ 0.24 | |||
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
Description
General part information
MNIM3 Series
M3 Shoulder Washer 0.078" (1.98mm) Thick Nylon
