BLC-L05D-U2

Active

Amphenol All Sensors Corporation

SENSOR 0.18PSIG 0.12" .024V

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 0.18PSIG 0.12" .024V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BLC-L05D-U2	BLC-L05D Series

Accuracy	0.5 %	0.5 %
Applications	Board Mount	Board Mount
Maximum Pressure [Max]	7.25 PSI	7.25 PSI
Maximum Pressure [Max]	50 kPa	50 kPa
Mounting Type	Surface Mount	Surface Mount
Operating Pressure	1.25 kPa	1.25 kPa
Operating Pressure	0.18 PSI	0.18 PSI
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output [Max]	24 mV	24 mV
Output [Min]	0 mV	0 mV
Output Type	Analog Voltage	Analog Voltage
Package / Case	6-SMD, Gull Wing, Top Port	6-SMD, Gull Wing, Top Port, 16-SOIC Module, Dual Top Ports
Port Size	Male - Tube	Male - Tube, Male, Tube, Dual
Port Size	3 mm, 0.12 "	0.12 - 3 mm
Port Size	-	0.12 "
Port Style	Barbless	Barbless, Barbed
Pressure Type	Gauge	Gauge, Differential
Termination Style	Gull Wing	Gull Wing
Voltage - Supply [Max]	1.8 V	1.8 V
Voltage - Supply [Min]	0.9 V	0.9 V

SENSOR 0.18PSIG 0.12" .024V

Part	Port Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Operating Pressure	Operating Pressure	Output [Max]	Output [Min]	Port Size	Port Size	Termination Style	Pressure Type	Output Type	Applications	Package / Case	Port Size
Amphenol All Sensors Corporation BLC-L05D-U2	Barbless	1.8 V	0.9 V	7.25 PSI	50 kPa	0.5 %	-25 °C	85 °C	Surface Mount	1.25 kPa	0.18 PSI	24 mV	0 mV	Male - Tube	0.12 ", 3 mm	Gull Wing	Gauge	Analog Voltage	Board Mount	6-SMD, Gull Wing, Top Port
Amphenol All Sensors Corporation BLC-L05D-D4	Barbed	1.8 V	0.9 V	7.25 PSI	50 kPa	0.5 %	-25 °C	85 °C	Surface Mount	1.25 kPa	0.18 PSI	24 mV	0 mV	Dual, Male, Tube	3 mm	Gull Wing	Differential	Analog Voltage	Board Mount	16-SOIC Module, Dual Top Ports	0.12 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	25	$ 24.45

General part information

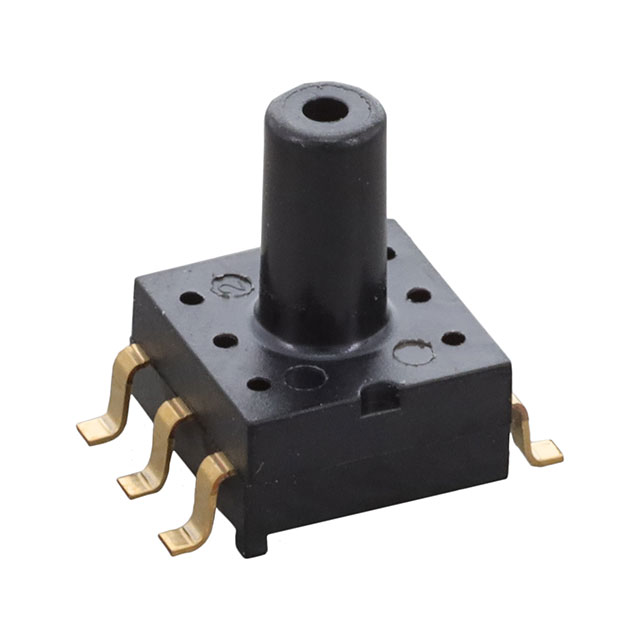

Pressure Sensor ±0.18PSI (±1.25kPa) Gauge Male - 0.12" (3mm) Tube 0 mV ~ 24 mV 6-SMD, Gull Wing, Top Port
