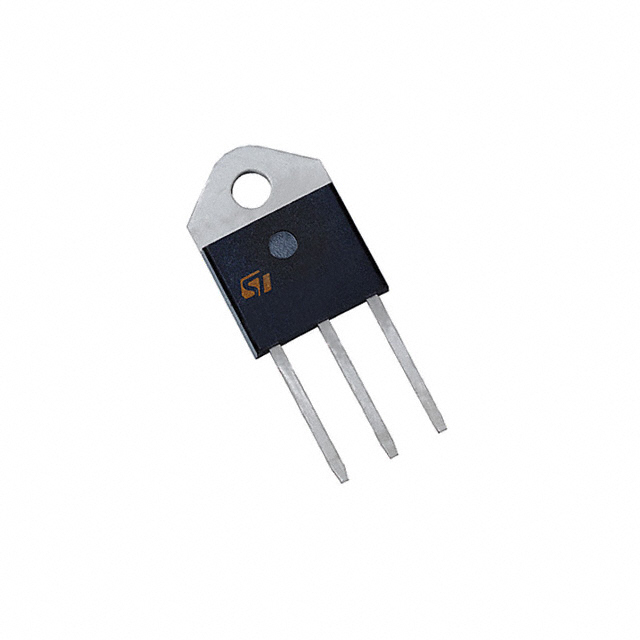

BTA41-400BRG

Active

STMicroelectronics

TRIAC 400V 40A TOP3

Search across all available documentation for this part.

Active

STMicroelectronics

TRIAC 400V 40A TOP3

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BTA41-400BRG	BTA41 Series

	-	-
Configuration	Single	Single
Current - Gate Trigger (Igt) (Max) [Max]	50 mA	50 mA
Current - Hold (Ih) (Max) [Max]	80 mA	80 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	420 A, 400 A	400 - 420 A
Current - On State (It (RMS)) (Max) [Max]	40 A	40 A
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-40 °C	-40 °C
Supplier Device Package	TOP3	TOP3
Triac Type	Standard	Standard
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.3 V	1.3 V
Voltage - Off State	400 V	400 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

40A standard Triacs

Part	Supplier Device Package	Triac Type	Current - Gate Trigger (Igt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Configuration	Current - On State (It (RMS)) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Off State	Voltage - Gate Trigger (Vgt) (Max) [Max]	Mounting Type	Current - Hold (Ih) (Max) [Max]
STMicroelectronics BTA41-800BRG
STMicroelectronics BTA41-800BRG
STMicroelectronics BTA41-400BRG	TOP3	Standard	50 mA	400 A, 420 A	Single	40 A	-40 °C	125 ¯C	400 V	1.3 V	Through Hole	80 mA
STMicroelectronics BTA41-800BRG
STMicroelectronics BTA41-600BRG
STMicroelectronics BTA41-600BRG

General part information

Available in high power packages, the BTA/BTB40-41 series is suitable for general purpose AC switching.

The BTA series provides an insulated tab (rated at 2500 V rms).
