100025333

Active

Telegartner Inc

ADAPT STR 4.3-10MS - 2.2-5F

Search across all available documentation for this part.

Active

Telegartner Inc

ADAPT STR 4.3-10MS - 2.2-5F

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100025333	J01443 Series

Adapter Series [Max]	2.2/5	2.2/5
Adapter Series [Min]	4.3/10	4.3/10
Adapter Type	Plug to Jack	Plug to Jack
Body Material	Brass	Brass, Beryllium Copper
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Gender	-	Male to Female
Conversion Type	Between Series	Between Series
Convert From (Adapter End)	4.3/10 Plug, Male Pin	4.3/10 Plug, Male Pin, 2.2/5 Plug, Male Pin
Convert To (Adapter End)	2.2/5 Jack, Female Socket	2.2/5 Jack, Female Socket, 4.3/10 Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	6000 MHz
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-55 °C	-55 °C
Style	Straight	Straight

ADAPT STR 4.3-10MS - 2.2-5F

Part	Center Contact Material	Conversion Type	Adapter Series [Max]	Adapter Series [Min]	Mounting Type	Impedance	Body Material	Dielectric Material	Adapter Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Convert To (Adapter End)	Style	Frequency - Max [Max]	Convert From (Adapter End)	Center Gender
Telegartner Inc 100025333	Beryllium Copper	Between Series	2.2/5	4.3/10	Free Hanging (In-Line)	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)	Plug to Jack	90 °C	-55 °C	IP68 - Dust Tight, Waterproof	2.2/5 Jack, Female Socket	Straight	6000 MHz	4.3/10 Plug, Male Pin
Telegartner Inc 100025330		Between Series	2.2/5	4.3/10	Free Hanging (In-Line)	50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Plug to Jack	90 °C	-55 °C	IP68 - Dust Tight, Waterproof	4.3/10 Jack, Female Socket	Straight	6000 MHz	2.2/5 Plug, Male Pin	Male to Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

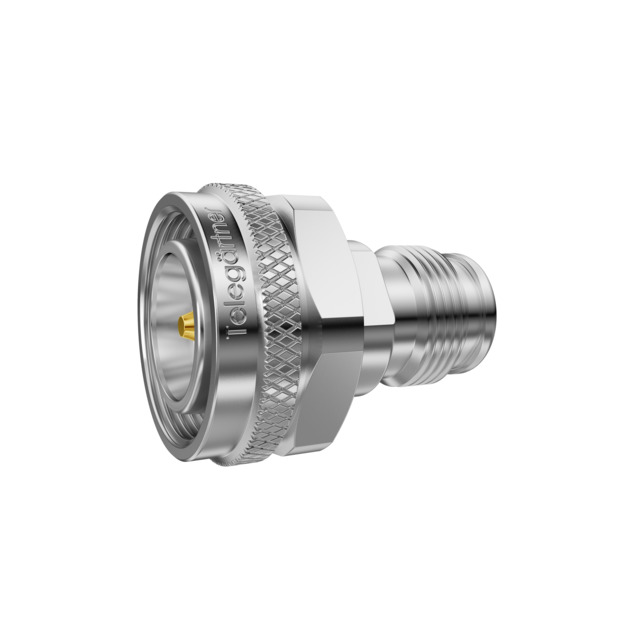

Adapter Coaxial Connector 4.3/10 Plug, Male Pin To 2.2/5 Jack, Female Socket 50 Ohms
