2-1394918-3

Active

TE Connectivity AMP Connectors

CONN RCPT 3POS IDC TIN

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT 3POS IDC TIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1394918-3	1394918 Series

Cable Termination	IDC	IDC
Color	Gray	Gray
Connector Type	Receptacle	Receptacle
Contact Finish	Tin	Tin
Contact Type	Female Socket	Female Socket
Features	Mates to PCB	Mates to PCB
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Positions	-	2 - 7
Number of Rows	1	1
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Wire Type	Discrete	Discrete

CONN RCPT 2POS IDC TIN

Part	Features	Color	Cable Termination	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Contact Type	Number of Rows	Mounting Type	Wire Type	Connector Type
TE Connectivity AMP Connectors 2-1394918-2	Mates to PCB	Gray	IDC	2	Tin	5 mm	0.197 in	Female Socket	1	Free Hanging (In-Line), Right Angle	Discrete	Receptacle
TE Connectivity AMP Connectors 1394918-5	Mates to PCB	Gray	IDC		Tin	5 mm	0.197 in	Female Socket	1	Free Hanging (In-Line), Right Angle	Discrete	Receptacle
TE Connectivity AMP Connectors 1394918-4	Mates to PCB	Gray	IDC	4	Tin	5 mm	0.197 in	Female Socket	1	Free Hanging (In-Line), Right Angle	Discrete	Receptacle
TE Connectivity AMP Connectors 2-1394918-3	Mates to PCB	Gray	IDC		Tin	5 mm	0.197 in	Female Socket	1	Free Hanging (In-Line), Right Angle	Discrete	Receptacle
TE Connectivity AMP Connectors 1394918-7	Mates to PCB	Gray	IDC	7	Tin	5 mm	0.197 in	Female Socket	1	Free Hanging (In-Line), Right Angle	Discrete	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

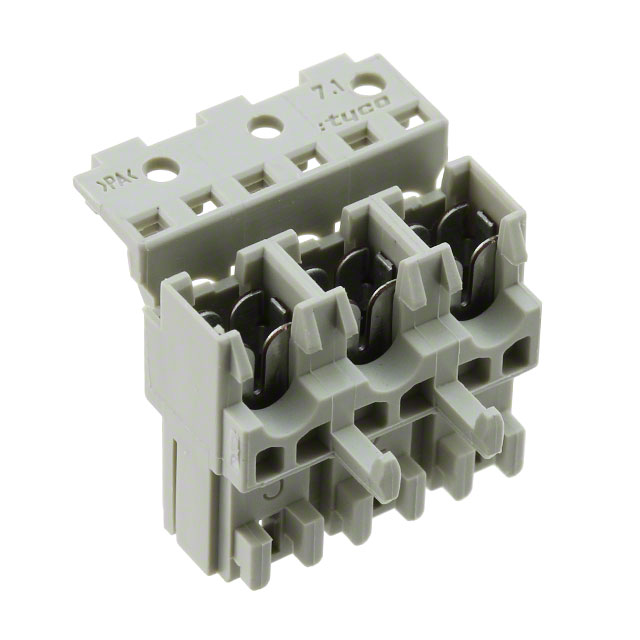

3 Position Rectangular Receptacle Connector IDC Tin
