1-87756-6

Active

TE Connectivity AMP Connectors

CONN SOCKET 22-26AWG CRIMP GOLD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SOCKET 22-26AWG CRIMP GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

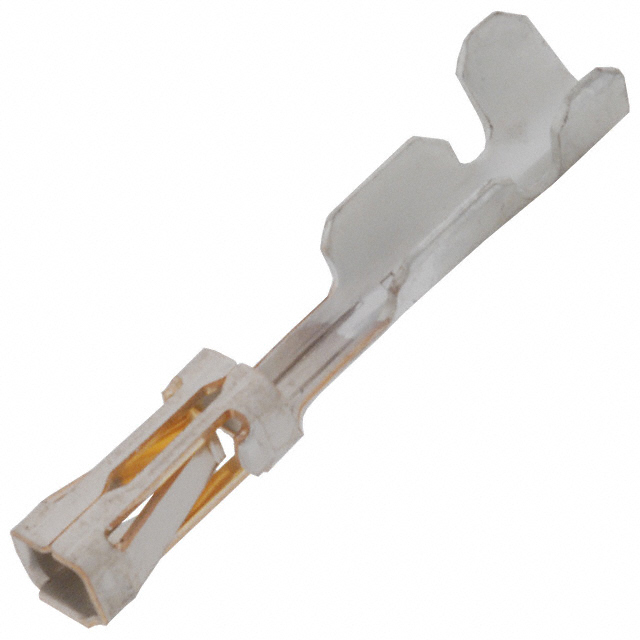

Socket Contact Gold 22-26 AWG Crimp

Technical documentation and resources

Part	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 87756-7	Tin	22 AWG	26 AWG	Crimp	Socket	50 µin	1.27 µm
TE Connectivity AMP Connectors 1-87756-8	Gold	22 AWG	26 AWG	Crimp	Socket	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 1-87756-7	Gold	22 AWG	26 AWG	Crimp	Socket	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 6-87756-6	Gold	22 AWG	26 AWG	Crimp	Socket	15 µin	0.38 µm
TE Connectivity AMP Connectors 1-87756-6	Gold	22 AWG	26 AWG	Crimp	Socket	15 µin	0.38 µm
TE Connectivity AMP Connectors 87756-2	Gold	22 AWG	26 AWG	Crimp	Socket	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 1-87756-1	Gold	22 AWG	26 AWG	Crimp	Socket	50 µin	1.27 µm
TE Connectivity AMP Connectors 1-87756-2	Gold	22 AWG	26 AWG	Crimp	Socket	15 µin	0.38 µm
