Specification	M39029/75-417

Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Material	Copper Alloy
Contact Size	12
Contact Termination	Crimp
Contact Type	Coax Socket, Pin Center
Grade	Military
Qualification	MIL-C-39029
Type	Coaxial
Wire Gauge or Range - Coaxial (Type)	RG-180B, 195A

M39029 Series

Part	Contact Finish	Contact Type	Contact Material	Grade	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Contact Termination	Type	Contact Size	Contact Finish Thickness	Qualification	Wire Gauge or Range - Coaxial (Type)	Wire Gauge or Range - Coaxial (Gauge)

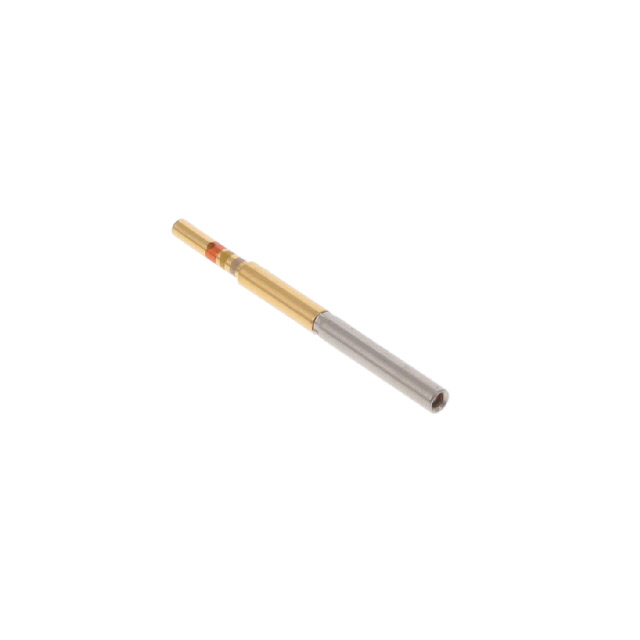

Amphenol Aerospace Operations M39029/56-349	Gold	Socket	Copper Alloy	Military	22 AWG	28 AWG	Crimp	Signal	22 M	50 µin	MIL-C-39029
Amphenol Aerospace Operations M39029/78-432	Gold	Coax Socket Pin Center	Copper Alloy	Military			Crimp	Coaxial	16 S	50 µin	MIL-C-39029	174A 187A 188A RG-161	316
Amphenol Aerospace Operations M39029/75-417	Gold	Coax Socket Pin Center	Copper Alloy	Military			Crimp	Coaxial	12	50 µin	MIL-C-39029	195A RG-180B
Amphenol Aerospace Operations M39029/58-528	Gold	Pin	Copper Alloy	Military			Crimp	Signal	10	50 µin	MIL-C-39029
