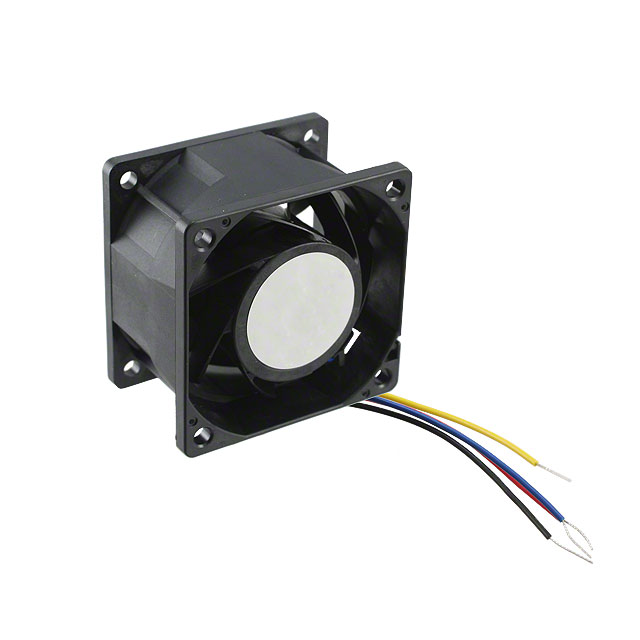

THB0648BE

Active

Delta Electronics

FAN AXIAL 60X38MM 48VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 60X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	THB0648BE

Air Flow	68.6 CFM
Air Flow	1.92 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.34 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	61.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	16.32 W
RPM	14700 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	718.9 Pa
Static Pressure	2.886 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	36 VDC
Weight	130.18 g
Weight	0.287 lb
Width [y]	38 mm

FAN AXIAL 60X38MM 48VDC WIRE

Part	Bearing Type	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Current Rating (Amps)	Termination	Voltage - Rated [custom]	Approval Agency	Noise	Static Pressure	Static Pressure	Material - Blade	Width [y]	Fan Type	Lifetime @ Temp.	Size / Dimension [x]	Size / Dimension [y]	Air Flow	Air Flow	Weight	Weight	RPM	Features	Voltage Range [Max]	Voltage Range [Min]
Delta Electronics THB0648BE	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	16.32 W	0.34 A	4 Wire Leads	48 VDC	CE, cURus, TUV	61.5 dB(A)	718.9 Pa	2.886 in H2O	Plastic	38 mm	Tubeaxial	70000 Hrs	60 mm	60 mm	68.6 CFM	1.92 m³/min	130.18 g	0.287 lb	14700 RPM	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	60 V	36 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Square - 60mm L x 60mm H Ball 68.6 CFM (1.92m³/min) 4 Wire Leads
