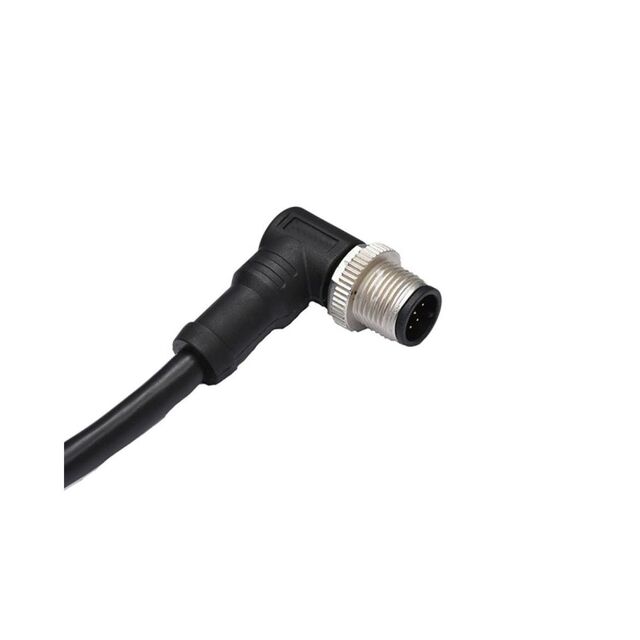

M12B-05BMMM-SR8B01
ActiveAmphenol LTW
M SERIES SENSOR CONNECTOR, M12, B CODE, METAL, 4A, 05 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDED,
Deep-Dive with AI
Search across all available documentation for this part.
M12B-05BMMM-SR8B01
ActiveAmphenol LTW
M SERIES SENSOR CONNECTOR, M12, B CODE, METAL, 4A, 05 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDED,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M12B-05BMMM-SR8B01 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | B |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle, Right Angle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection | IP68 - Dust Tight, Waterproof; NMEA 2000 |
| Length [x] | 1 m |
| Length [x] | 3.28 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M12B-05BMMM Series
Circular Cable Assembly Unshielded 3.28' (1.00m)
Documents
Technical documentation and resources
No documents available
