10-487-B36

Active

Coax Connectors Ltd

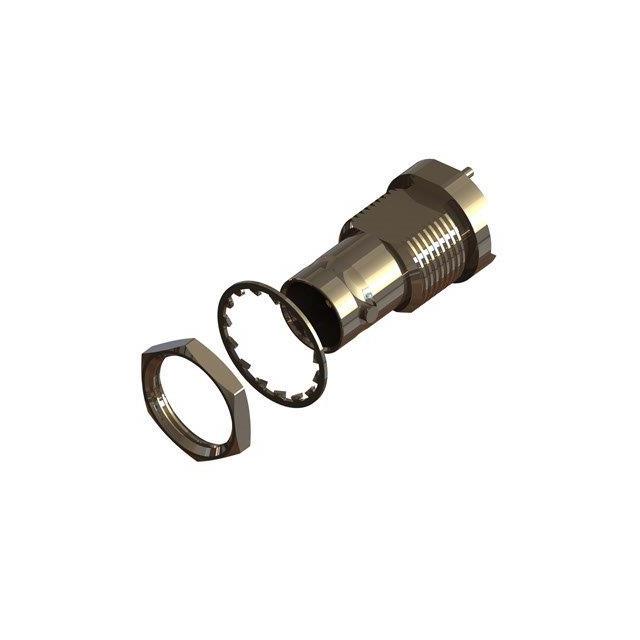

BNC VERTICAL BULKHEAD JACK 75OHM

Search across all available documentation for this part.

Active

Coax Connectors Ltd

BNC VERTICAL BULKHEAD JACK 75OHM

Technical Specifications

Parameters and characteristics for this part

Specification	10-487-B36

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	75 Ohms
Ingress Protection	IP64 - Dust Tight, Water Resistant
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

BNC VERTICAL BULKHEAD JACK 75OHM

Part	Center Contact Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Housing Color	Connector Style	Fastening Type	Dielectric Material	Mating Cycles	Body Material	Body Finish	Impedance	Frequency - Max [Max]	Mounting Type	Ingress Protection	Center Contact Plating	Number of Ports	Mounting Feature	Contact Termination
Coax Connectors Ltd 10-487-B36	Phosphor Bronze	Female Socket, Jack	155 °C	-55 °C	Solder	Silver	BNC	Bayonet Lock	Polytetrafluoroethylene (PTFE)	500	Brass	Nickel	75 Ohms	6000 MHz	Panel Mount, Through Hole	IP64 - Dust Tight, Water Resistant	Gold	1	Bulkhead - Front Side Nut	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole Solder
