Q-2503Y000H1.5M

Active

Amphenol Custom Cable

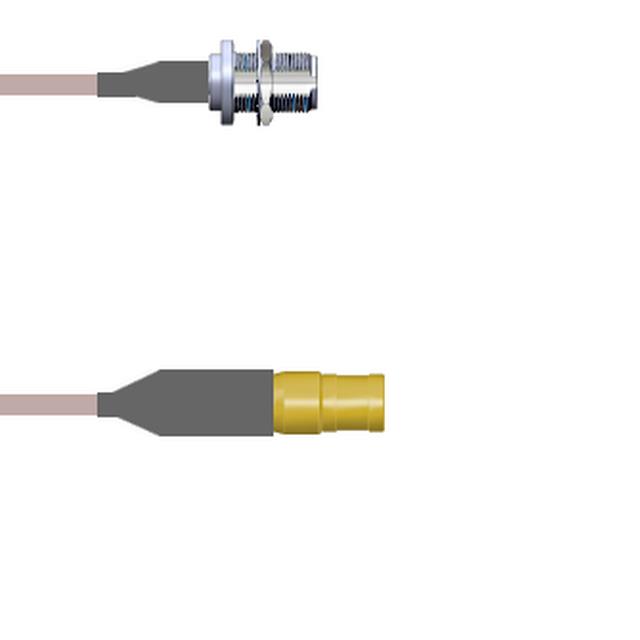

CBL ASSY SMB-NTYPE PLG-JACK 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2503Y000H1.5M

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLG-JACK 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2503Y000H1.5M

1st Connector	SMB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2503Y0 Series

Part	Cable Type	1st Connector	2nd Connector Mounting Type	2nd Connector Mounting Feature	Frequency - Max [Max]	Features	2nd Connector	2nd Contact Gender	Style	Overall Impedance	1st Contact Gender	Color	1st Connector Mounting Type	Length	Length	Length
Amphenol Custom Cable Q-2503Y000H108i	RG-142	SMB Plug	Panel Mount	Bulkhead - Front Side Nut	4 GHz	Shielded	N-Type Jack	Female	SMB to N-Type	50 Ohms	Female	Copper	Free Hanging (In-Line)	2.7 m	9 ft	108 in
Amphenol Custom Cable Q-2503Y000H.75M	RG-142	SMB Plug	Panel Mount	Bulkhead - Front Side Nut	4 GHz	Shielded	N-Type Jack	Female	SMB to N-Type	50 Ohms	Female	Copper	Free Hanging (In-Line)	750 mm		29.53 "
Amphenol Custom Cable Q-2503Y000H006i	RG-142	SMB Plug	Panel Mount	Bulkhead - Front Side Nut	4 GHz	Shielded	N-Type Jack	Female	SMB to N-Type	50 Ohms	Female	Copper	Free Hanging (In-Line)	152.4 mm		6 in
Amphenol Custom Cable Q-2503Y000H012i	RG-142	SMB Plug	Panel Mount	Bulkhead - Front Side Nut	4 GHz	Shielded	N-Type Jack	Female	SMB to N-Type	50 Ohms	Female	Copper	Free Hanging (In-Line)	304.8 mm		12 "
Amphenol Custom Cable Q-2503Y000H2.5M	RG-142	SMB Plug	Panel Mount	Bulkhead - Front Side Nut	4 GHz	Shielded	N-Type Jack	Female	SMB to N-Type	50 Ohms	Female	Copper	Free Hanging (In-Line)	2.5 m	8.2 '	98.4 in
Amphenol Custom Cable Q-2503Y000H048i	RG-142	SMB Plug	Panel Mount	Bulkhead - Front Side Nut	4 GHz	Shielded	N-Type Jack	Female	SMB to N-Type	50 Ohms	Female	Copper	Free Hanging (In-Line)	1200 mm	4 ft	48 in
Amphenol Custom Cable Q-2503Y000H1.5M	RG-142	SMB Plug	Panel Mount	Bulkhead - Front Side Nut	4 GHz	Shielded	N-Type Jack	Female	SMB to N-Type	50 Ohms	Female	Copper	Free Hanging (In-Line)	1.5 m	4.9 ft	59.1 in
Amphenol Custom Cable Q-2503Y000H002M	RG-142	SMB Plug	Panel Mount	Bulkhead - Front Side Nut	4 GHz	Shielded	N-Type Jack	Female	SMB to N-Type	50 Ohms	Female	Copper	Free Hanging (In-Line)	2 m	6.6 ft	78.7 in
Amphenol Custom Cable Q-2503Y000H072i	RG-142	SMB Plug	Panel Mount	Bulkhead - Front Side Nut	4 GHz	Shielded	N-Type Jack	Female	SMB to N-Type	50 Ohms	Female	Copper	Free Hanging (In-Line)	1.8 m	6 ft	72 in
Amphenol Custom Cable Q-2503Y000H0.5M	RG-142	SMB Plug	Panel Mount	Bulkhead - Front Side Nut	4 GHz	Shielded	N-Type Jack	Female	SMB to N-Type	50 Ohms	Female	Copper	Free Hanging (In-Line)	50 cm		19.69 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 132.04
		25	$ 122.90
		50	$ 113.76
		100	$ 105.92
		250	$ 99.39

Description

General part information

Q-2503Y0 Series

Cable Assembly Coaxial SMB to N-Type RG-142 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
