2311-2-00-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.

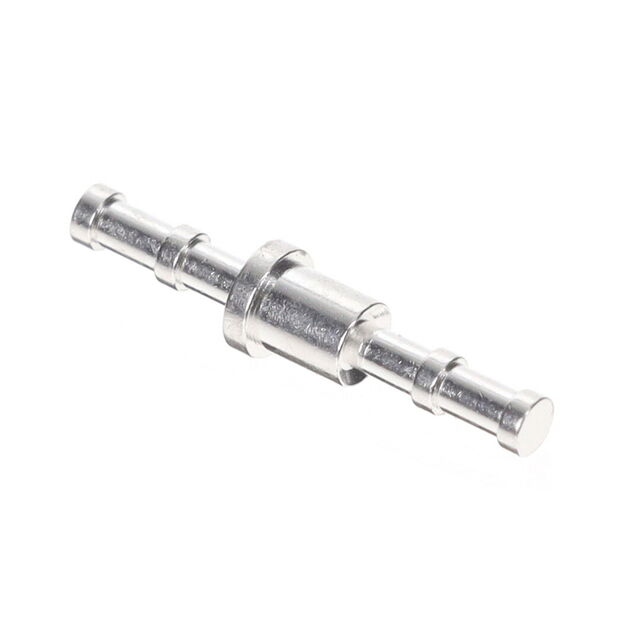

TERM TURRET DOUBLE L=4.72MM
Deep-Dive with AI
Search across all available documentation for this part.
2311-2-00-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET DOUBLE L=4.72MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2311-2-00-44-00-00-07-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Silver |
| Contact Finish Thickness | 300 µin |
| Contact Finish Thickness | 7.62 µm |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 1.27 mm |
| Diameter - Turret Head [diameter] | 0.05 in |
| Flange Diameter [diameter] | 2.39 mm |
| Flange Diameter [diameter] | 0.094 in |
| Insulation | Non-Insulated |
| Length - Above Board [x] | 0.186 in |
| Length - Above Board [x] | 4.72 mm |
| Length - Below Flange [x] | 0.246 in |
| Length - Below Flange [x] | 6.25 mm |
| Length - Overall [x] | 10.97 mm |
| Length - Overall [x] | 0.432 in |
| Mounting Hole Diameter [diameter] | 1.93 mm |
| Mounting Hole Diameter [diameter] | 0.076 in |
| Mounting Type | Through Hole |
| Number of Turrets | Double |
| Terminal Type | Double End |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.96 | |
| 10 | $ 0.81 | |||
| 100 | $ 0.73 | |||
| 1000 | $ 0.53 | |||
| 5000 | $ 0.46 | |||
| 10000 | $ 0.44 | |||
Description
General part information
2311-2 Series
Terminal Turret Connector Double End 0.186" (4.72mm) Silver
Documents
Technical documentation and resources
No documents available
