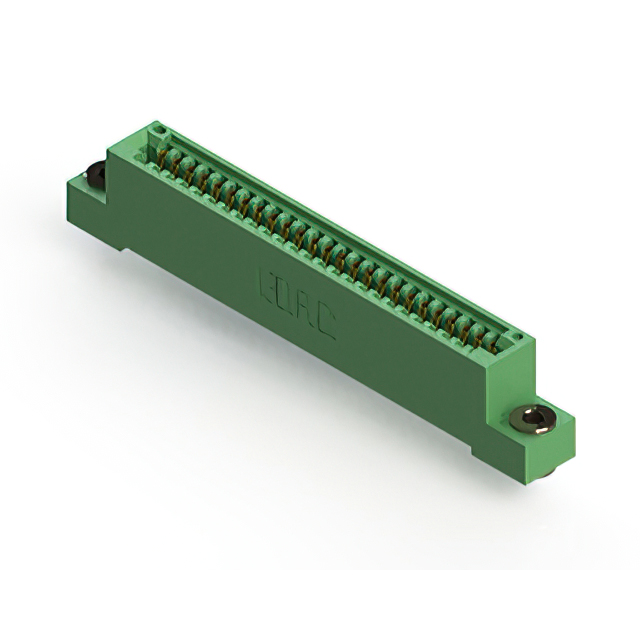

845-025-523-103

Active

EDAC Inc.

CONN EDGE SINGLE FML 25POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-025-523-103

Active

EDAC Inc.

CONN EDGE SINGLE FML 25POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-025-523-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions/Bay/Row [custom]	25
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

845-025 Series

...

Part	Number of Positions/Bay/Row [custom]	Number of Rows	Contact Finish	Gender	Color	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Card Type	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination Rows	Flange Feature	Contact Material	Pitch [x]	Pitch [x]	Termination	Read Out	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 845-025-521-607	25	1	Gold	Female	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	125 °C	-40 °C	Cantilever	Non Specified - Single Edge	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	1	M3 Threaded Insert Top Mount Opening	Copper Alloy	2.54 mm	0.1 in	Solder	Single
EDAC Inc. 845-025-544-407	25	1	Gold	Female	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	125 °C	-40 °C	Cantilever	Non Specified - Single Edge	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	1	M3 Threaded Insert Top Mount Opening	Copper Alloy	2.54 mm	0.1 in	Wire Wrap	Single
EDAC Inc. 845-025-540-407	25	1	Gold	Female	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	125 °C	-40 °C	Cantilever	Non Specified - Single Edge	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	1	M3 Threaded Insert Top Mount Opening	Copper Alloy	2.54 mm	0.1 in	Wire Wrap	Single
EDAC Inc. 845-025-524-404	25	1	Gold	Female	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	125 °C	-40 °C	Cantilever	Non Specified - Single Edge	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Top Mount Opening Unthreaded	Copper Alloy	2.54 mm	0.1 in	Solder	Single	0.156 in	3.96 mm
EDAC Inc. 845-025-542-412	25	1	Gold	Female	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	125 °C	-40 °C	Cantilever	Non Specified - Single Edge	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Side Mount Opening Unthreaded	Copper Alloy	2.54 mm	0.1 in	Wire Wrap	Single			3.25 mm	0.128 in
EDAC Inc. 845-025-523-103	25	1	Gold	Female	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	125 °C	-40 °C	Cantilever	Non Specified - Single Edge	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Floating Bobbin Flush Mount	Copper Alloy	2.54 mm	0.1 in	Solder	Single	0.116 in	2.95 mm
EDAC Inc. 845-025-558-108	25	1	Gold	Female	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	125 °C	-40 °C	Cantilever	Non Specified - Single Edge	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	1	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	2.54 mm	0.1 in	Solder	Single
EDAC Inc. 845-025-524-407	25	1	Gold	Female	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	125 °C	-40 °C	Cantilever	Non Specified - Single Edge	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	1	M3 Threaded Insert Top Mount Opening	Copper Alloy	2.54 mm	0.1 in	Solder	Single
EDAC Inc. 845-025-520-612	25	1	Gold	Female	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	125 °C	-40 °C	Cantilever	Non Specified - Single Edge	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Side Mount Opening Unthreaded	Copper Alloy	2.54 mm	0.1 in	Solder	Single			3.25 mm	0.128 in
EDAC Inc. 845-025-521-103	25	1	Gold	Female	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	125 °C	-40 °C	Cantilever	Non Specified - Single Edge	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Floating Bobbin Flush Mount	Copper Alloy	2.54 mm	0.1 in	Solder	Single	0.116 in	2.95 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 72.29
Newark	Each	1	$ 83.45
		100	$ 76.09
		250	$ 70.77
		500	$ 54.68
		1000	$ 37.13

Description

General part information

845-025 Series

25 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
