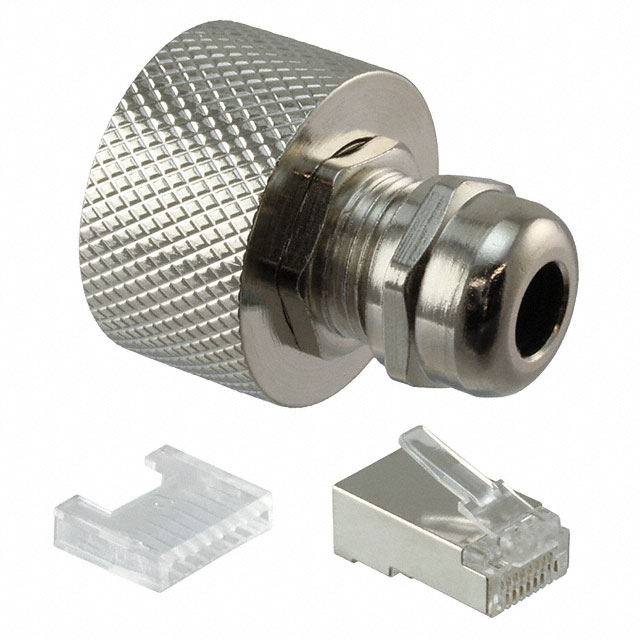

17-103274

Active

Amphenol CONEC

CONN MOD PLUG 8P8C SHIELDED

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN MOD PLUG 8P8C SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	17-103274

Cable Type	Round Cable, Solid, Stranded Wires
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Current Rating (Amps)	1.2 A
Features	Circular Threaded Coupling
Housing Material	Zinc Die Cast
Ingress Protection	IP67
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat5e
Shielding	Shielded
Termination	IDC
Voltage Rating	100 V

Part	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Finish	Voltage Rating	Ratings	Number of Positions/Contacts	Features	Connector Type	Cable Type	Contact Material	Current Rating (Amps)	Shielding	Ingress Protection	Housing Material	Length [x]	Length [x]	Style	Mounting Type	Color	Length	Length
Amphenol CONEC 17-103274	50 µin	1.27 µm	IDC	Gold	100 V	Cat5e	8p8c (RJ45 Ethernet)	Circular Threaded Coupling	Plug	Round Cable Solid Stranded Wires	Phosphor Bronze	1.2 A	Shielded	IP67	Zinc Die Cast
Amphenol CONEC 17-103204							8p8c (RJ45 Ethernet)	Circular Bayonet Coupling Molded Plugs	Plug to Plug	Round Cable			Shielded			2 m	6.56 ft	Cat5e Industrial Environments - IP67	Free Hanging (In-Line)	Black
Amphenol CONEC 17-103234							8p8c (RJ45 Ethernet)	Circular Bayonet Coupling Molded Plugs	Plug to Plug	Round Cable			Shielded					Cat5e Industrial Environments - IP67	Free Hanging (In-Line)	Black	10 m	32.81 ft
Amphenol CONEC 17-103224							8p8c (RJ45 Ethernet)	Circular Bayonet Coupling Molded Plugs	Plug to Plug	Round Cable			Shielded					Cat5e Industrial Environments - IP67	Free Hanging (In-Line)	Black
Amphenol CONEC 17-103214							8p8c (RJ45 Ethernet)	Circular Bayonet Coupling Molded Plugs	Plug to Plug	Round Cable			Shielded			4 m	13.12 ft	Cat5e Industrial Environments - IP67	Free Hanging (In-Line)	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat5e IDC
