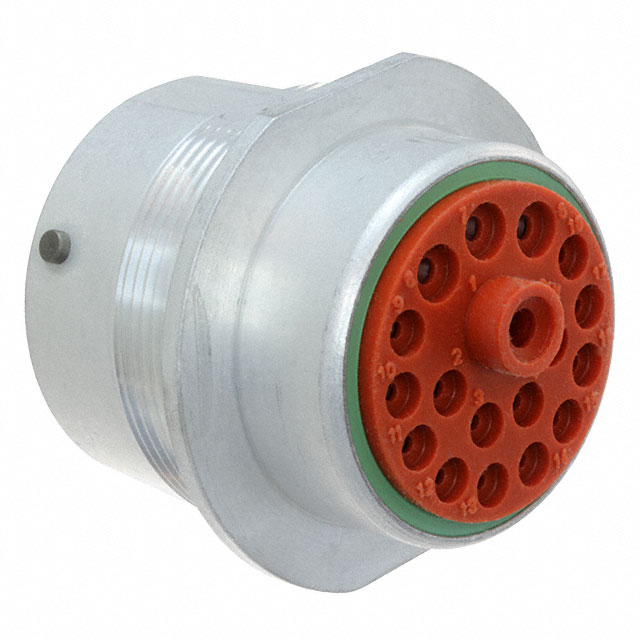

HD34-24-18PN
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT HSNG MALE 18POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
HD34-24-18PN
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT HSNG MALE 18POS PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HD34-24-18PN |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 12 (3), 8 (1), 16 (14) |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyetherimide (PEI) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included, Jam Nut Not Included |
| Number of Positions | 18 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 18 |
| Shell Size - Insert [Min] | 24 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.41 | |
| 10 | $ 17.00 | |||
| 25 | $ 16.26 | |||
| 50 | $ 15.74 | |||
| 100 | $ 15.22 | |||
| 250 | $ 14.38 | |||
| 500 | $ 13.96 | |||
Description
General part information
HD34-24 Series
18 Position Circular Connector Receptacle Housing Panel Mount
