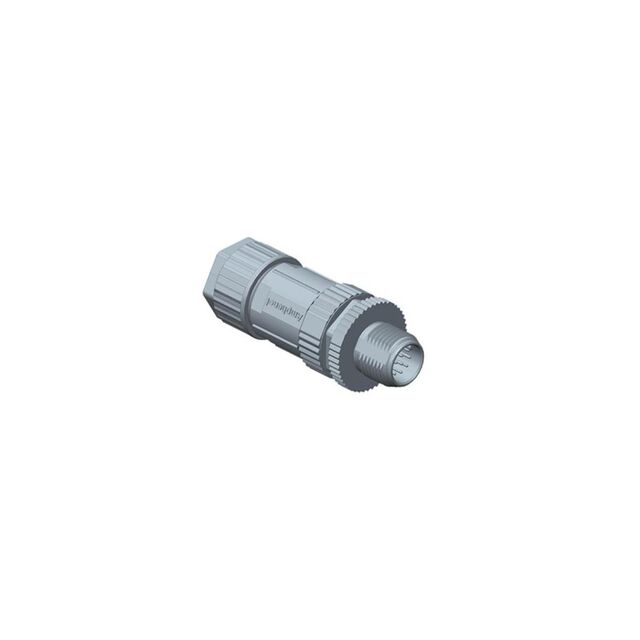

M12A-04BMMA-SL8001

Active

Amphenol LTW

CONN RCPT MALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Number of Positions	Backshell Material, Plating	Orientation	Features	Mounting Type	Current Rating (Amps)	Contact Material	Insert Material	Primary Material	Cable Opening [diameter]	Cable Opening [diameter]	Connector Type	Ingress Protection	Contact Finish - Mating	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Color	Termination	Shell Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Shell Finish
Amphenol LTW M12A-04BMMA-SR7001	Shielded	4	Thermoplastic	A	Backshell Coupling Nut	Free Hanging (In-Line) Right Angle	4 A	Copper Alloy	Thermoplastic	Plastic	4.5 mm 6.5 mm	0.177 in 0.256 in	Male Pins Plug	IP67 - Dust Tight Waterproof	Gold	M12-4	-40 °C	105 ░C	60 VDC	Black	Screw
Amphenol LTW M12A-04BMMA-SL8001	Unshielded	4	Nylon Polyamide (PA)	A	Backshell	Free Hanging (In-Line)		Copper Alloy	Nylon Polyamide (PA)	Metal			Male Pins Receptacle	IP68 - Dust Tight Waterproof	Gold	M12-4	-40 °C	105 ░C	250 VDC	Black Silver		Zinc Alloy	4 mm	0.315 in	0.157 in	8 mm	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
