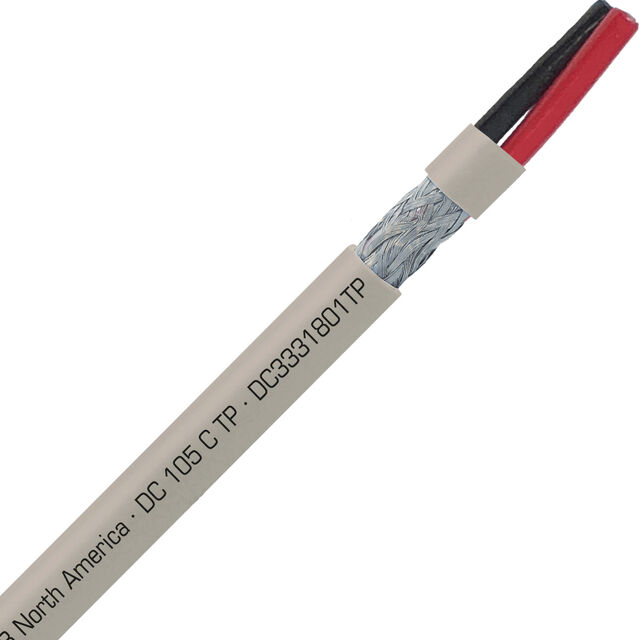

DC3331801TP

Active

SAB North America

MULTI-PAIR 2COND 18AWG GRY 1=1FT

Search across all available documentation for this part.

Active

SAB North America

MULTI-PAIR 2COND 18AWG GRY 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3331801TP

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC), Nylon
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Flame Retardant, Oil Resistant
Jacket (Insulation) Diameter [diameter]	7.62 mm
Jacket (Insulation) Diameter [diameter]	0.3 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Tan, Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Ratings	UL Style CMG, PLTC
Shield Coverage	100 %
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	18 AWG

MULTI-PAIR 2COND 18AWG GRY 1=1FT

Part	Voltage	Length	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Shield Coverage	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Shield Material	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Jacket (Insulation) Material	Conductor Material	Wire Gauge	Features
SAB North America DC3331801TP	300 V	Enter Number of Feet in Order Quantity	Braid, Foil	19	30 AWG	Gray, Tan	100 %	Multi-Pair	7.62 mm	0.3 in	PLTC, UL Style CMG	Copper, Tinned	Nylon, Poly-Vinyl Chloride (PVC)	-25 °C	105 ░C	2	Poly-Vinyl Chloride (PVC)	Copper, Tinned	18 AWG	Flame Retardant, Oil Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair Twisted) Conductor Multi-Pair Cable Tan 18 AWG Foil, Braid Enter Number of Feet in Order Quantity
