122490RP

Active

Amphenol RF

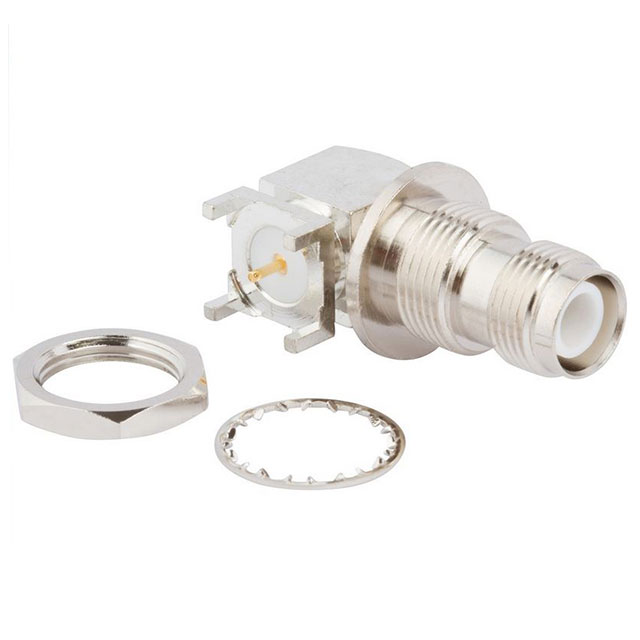

CONN TNC 0HZ TO 11GHZ 50OHM SOLDER RA THRU-HOLE RCP GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN TNC 0HZ TO 11GHZ 50OHM SOLDER RA THRU-HOLE RCP GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	122490RP

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Connector Style	Mounting Type	Housing Color	Shield Termination	Mating Cycles	Number of Ports	Center Contact Plating	Contact Termination	Body Finish	Includes	Frequency - Max [Max]	Voltage Rating	Body Material	Mounting Feature	Dielectric Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Impedance
Amphenol RF 122490RP	RP-TNC	Panel Mount Right Angle Through Hole	Silver	Solder	500	1	Gold	Solder	Nickel	1 Connector 1 Lockwasher 1 Nut	11 GHz	500 V	Brass	Bulkhead - Front Side Nut	Polytetrafluoroethylene (PTFE)	Jack Male Pin	-65 ░C	165 °C	Brass	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-TNC Connector Jack, Male Pin 50 Ohms Panel Mount, Through Hole, Right Angle Solder
