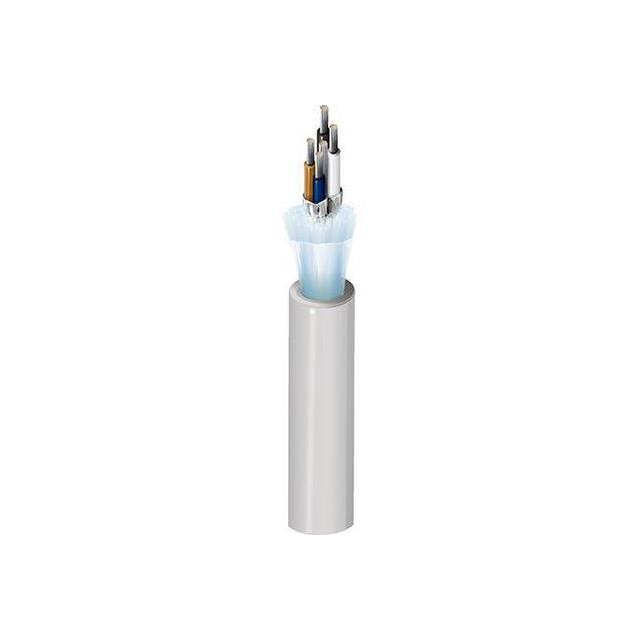

3086A U3R1000
ActiveBelden Inc.
MULTI-PAIR 4COND 16/20AWG
Deep-Dive with AI
Search across all available documentation for this part.
3086A U3R1000
ActiveBelden Inc.
MULTI-PAIR 4COND 16/20AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3086A U3R1000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC), Foam Polyethylene (FPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32, 28 |
| Conductor Strand [custom] | 19 Strands |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.398 in |
| Jacket (Insulation) Diameter [diameter] | 10.11 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.04 in |
| Jacket (Insulation) Thickness | 1.016 mm |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Ratings | UL Style 2464 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Voltage | 300 V |
| Wire Gauge | 16 AWG, 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 5.58 | |
Description
General part information
3086A Series
4 (2 Pair) Conductor Multi-Pair Cable Gray 16 AWG, 20 AWG Foil 1000.0' (304.8m)
