JWL21RAA/UC-WL

Active

NKK Switches

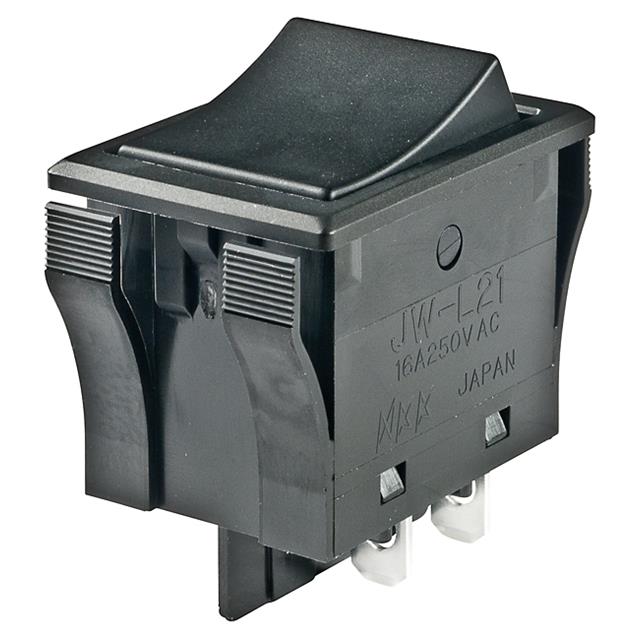

SWITCH ROCKER DPST 16A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JWL21RAA/UC-WL

Active

NKK Switches

SWITCH ROCKER DPST 16A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWL21RAA/UC-WL

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	UL, VDE, CSA
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Electrical Life	25000 Steps
Ingress Protection	Dust Proof
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	29.5 mm
Panel Cutout Dimensions [y]	20.5 mm
Switch Function	On-Off
Termination Style	Solder, Quick Connect
Termination Style	4.7 mm, 0.187 in
Voltage Rating - AC	125 V

JWL21R Series

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Circuit	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Type	Electrical Life	Mechanical Life	Termination Style	Termination Style	Ingress Protection	Voltage Rating - AC	Current Rating (Amps)	Color - Actuator/Cap	Features	Switch Function
NKK Switches JWL21RC2A/U	Panel Mount Snap-In	70 °C	-25 °C	O -	DPST	CSA UL VDE	29.5 mm	20.5 mm	Concave (Curved)	25000 Steps	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	Dust Proof	125 V	16 A	Red	Epoxy Sealed Terminals	On-Off
NKK Switches JWL21RA1A/U	Panel Mount Snap-In	70 °C	-25 °C	O I	DPST	CSA UL VDE	29.5 mm	20.5 mm	Concave (Curved)	25000 Steps	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	Dust Proof	125 V	16 A	Black	Epoxy Sealed Terminals	On-Off
NKK Switches JWL21RC2A	Panel Mount Snap-In	70 °C	-25 °C	O -	DPST	CSA UL VDE	29.5 mm	20.5 mm	Concave (Curved)	25000 Steps	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	Dust Proof	125 V	16 A	Red	Epoxy Sealed Terminals	On-Off
NKK Switches JWL21RAA/UC-WL	Panel Mount Snap-In	70 °C	-25 °C	No Marking	DPST	CSA UL VDE	29.5 mm	20.5 mm	Concave (Curved)	25000 Steps	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	Dust Proof	125 V	16 A	Black		On-Off
NKK Switches JWL21RB2A	Panel Mount Snap-In	70 °C	-25 °C	O -	DPST	CSA UL VDE	29.5 mm	20.5 mm	Concave (Curved)	25000 Steps	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	Dust Proof	125 V	16 A	Ivory	Epoxy Sealed Terminals	On-Off
NKK Switches JWL21RA1A	Panel Mount Snap-In	70 °C	-25 °C	O I	DPST	CSA UL VDE	29.5 mm	20.5 mm	Concave (Curved)	25000 Steps	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	Dust Proof	125 V	16 A	Black	Epoxy Sealed Terminals	On-Off
NKK Switches JWL21RCA/UC	Panel Mount Snap-In	70 °C	-25 °C	No Marking	DPST	CSA UL VDE	29.5 mm	20.5 mm	Concave (Curved)	25000 Steps	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	Dust Proof	125 V	16 A	Red	Epoxy Sealed Terminals	On-Off
NKK Switches JWL21RC2A/UCV	Panel Mount Snap-In	70 °C	-25 °C	O -	DPST	CSA UL VDE	29.5 mm	20.5 mm	Concave (Curved)	25000 Steps	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	Dust Proof	125 V	16 A	Red	Epoxy Sealed Terminals	On-Off
NKK Switches JWL21RAA/U	Panel Mount Snap-In	70 °C	-25 °C	No Marking	DPST	CSA UL VDE	29.5 mm	20.5 mm	Concave (Curved)	25000 Steps	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	Dust Proof	125 V	16 A	Black	Epoxy Sealed Terminals	On-Off
NKK Switches JWL21RAA	Panel Mount Snap-In	70 °C	-25 °C	No Marking	DPST	CSA UL VDE	29.5 mm	20.5 mm	Concave (Curved)	25000 Steps	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	Dust Proof	125 V	16 A	Black	Epoxy Sealed Terminals	On-Off

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 26.42
		10	$ 22.80
		25	$ 21.49
		50	$ 20.56
		100	$ 19.66
		250	$ 18.52
		500	$ 17.71

Description

General part information

JWL21R Series

Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
