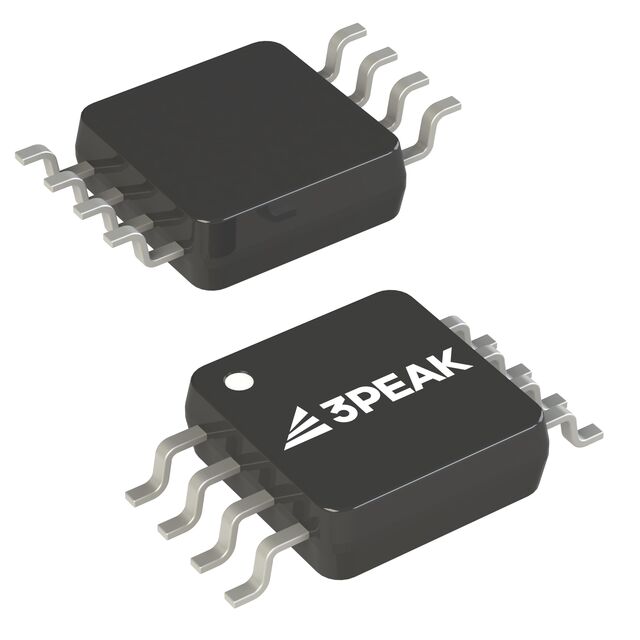

TPR5040-VS1R-S

Active

3PEAK

IC VREF SERIES 8TSSOP

Search across all available documentation for this part.

Active

3PEAK

IC VREF SERIES 8TSSOP

Technical Specifications

Parameters and characteristics commom to parts in this series

IC VREF SERIES 8TSSOP

Part	Output Type	Mounting Type	Current - Supply	Voltage - Output (Min/Fixed)	Current - Output	Reference Type	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Voltage - Input [Min]	Voltage - Input [Max]	Temperature Coefficient	Package / Case	Package / Case [custom]	Package / Case	Supplier Device Package	Noise - 0.1Hz to 10Hz	Package / Case [y]	Package / Case [x]
3PEAK TPR5040-VS1R-S	1.81 mOhm	Surface Mount	1 mA	4.096 V	10 mA	Series	-40 °C	125 °C	0.05 %	3 V	15 V	6 ppm/°C	8-MSOP, 8-TSSOP	0.118 in	3 mm	8-MSOP	3 µVp-p
3PEAK TPR5040-SO1R	1.81 mOhm	Surface Mount	1 mA	4.096 V	10 mA	Series	-40 °C	125 °C	0.05 %	3 V	15 V	6 ppm/°C	8-SOIC			8-SOP	3 µVp-p	3.9 mm	0.154 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Series Voltage Reference IC Fixed 4.096V V ±0.05% 10 mA 8-MSOP
