P0286

Obsolete

Terasic Inc.

DEV NANO SOC A9 SBC

Search across all available documentation for this part.

Obsolete

Terasic Inc.

DEV NANO SOC A9 SBC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P0286	5CSEMA4 Series

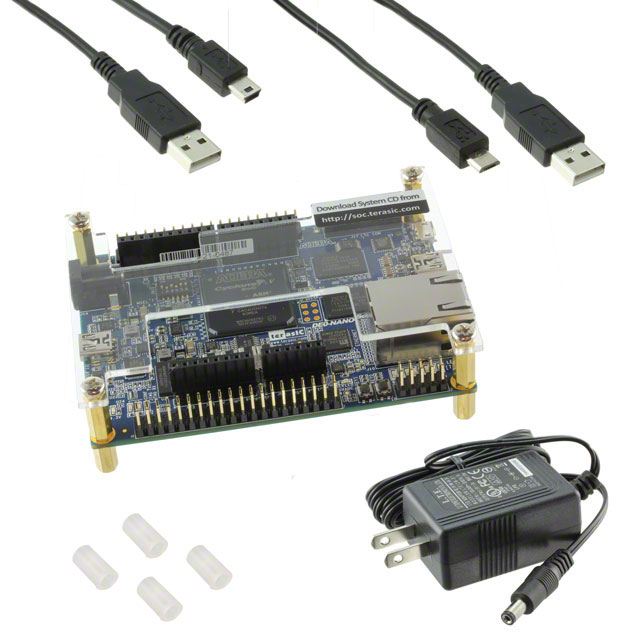

Contents	Power Supply, Cable(s), Accessories, Board(s)	Power Supply, Cable(s), Accessories, Board(s)
For Use With/Related Products	5CSEMA4	5CSEMA4
Interconnect System	Arduino R3 Shield	Arduino R3 Shield
Platform	Cyclone V SE SoC DE0-Nano-SoC	Cyclone V SE SoC ADC-SoC, Cyclone V SE SoC DE0-Nano-SoC
Suggested Programming Environment	Quartus II	Quartus II
Type	FPGA + MCU/MPU SoC	FPGA + MCU/MPU SoC
Utilized IC / Part	5CSEMA4	5CSEMA4

ADC-SOC-TERASIC

Part	Suggested Programming Environment	Interconnect System	Type	Utilized IC / Part	Contents	Platform	For Use With/Related Products
Terasic Inc. P0435	Quartus II	Arduino R3 Shield	FPGA + MCU/MPU SoC	5CSEMA4	Accessories, Board(s), Cable(s), Power Supply	Cyclone V SE SoC ADC-SoC	5CSEMA4
Terasic Inc. P0286	Quartus II	Arduino R3 Shield	FPGA + MCU/MPU SoC	5CSEMA4	Accessories, Board(s), Cable(s), Power Supply	Cyclone V SE SoC DE0-Nano-SoC	5CSEMA4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cyclone V SE SoC DE0-Nano-SoC 5CSEMA4 Cyclone® V SE FPGA + MCU/MPU SoC Evaluation Board
