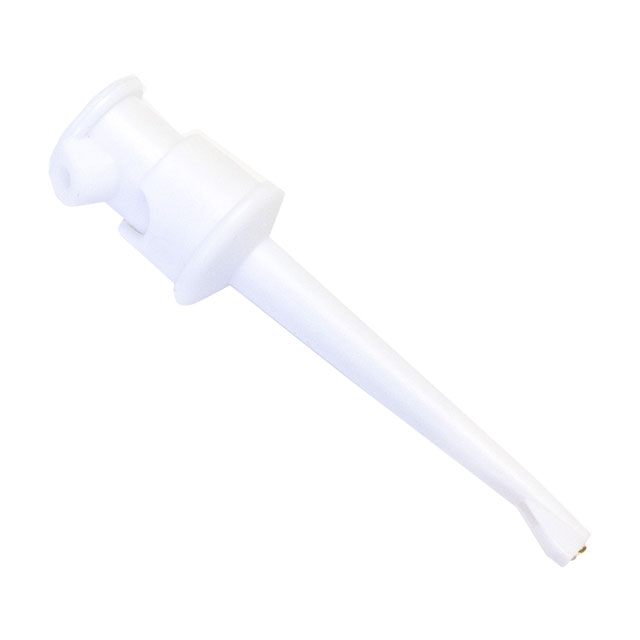

BU-P3925-9

Active

Mueller Electric Co

STANDARD PLUNGER CLIP, WHITE, 5A, 300V ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Mueller Electric Co

STANDARD PLUNGER CLIP, WHITE, 5A, 300V ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P3925-9

Color	White
Features	Plunger Style, Do It Yourself (DIY)
For Use With/Related Products	20 AWG Wire
Hook Type	Hook
Hook, Pincer Opening [Max] [z]	0.09 in
Hook, Pincer Opening [Max] [z]	2.29 mm
Length [x]	2.35 "
Length [x]	59.69 mm
Quantity	1 Box
Temperature Range [Max]	221 °F
Temperature Range [Max]	105 °C
Temperature Range [Min]	-40 °F
Temperature Range [Min]	-40 °C
Type	Standard

Part	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Quantity	Features	Hook Type	For Use With/Related Products	Length [x]	Length [x]	Hook, Pincer Opening [Max] [z]	Hook, Pincer Opening [Max] [z]	Color	Type
Mueller Electric Co BU-P3925-2	221 °F	-40 °F	-40 °C	105 °C	1 Box	Do It Yourself (DIY) Plunger Style	Hook	20 AWG Wire	2.35 "	59.69 mm	0.09 in	2.29 mm	Red	Standard
Mueller Electric Co BU-P3925-4	221 °F	-40 °F	-40 °C	105 °C	1 Box	Do It Yourself (DIY) Plunger Style	Hook	20 AWG Wire	2.35 "	59.69 mm	0.09 in	2.29 mm	Yellow	Standard
Mueller Electric Co BU-P3925-9	221 °F	-40 °F	-40 °C	105 °C	1 Box	Do It Yourself (DIY) Plunger Style	Hook	20 AWG Wire	2.35 "	59.69 mm	0.09 in	2.29 mm	White	Standard
Mueller Electric Co BU-P3925-0	221 °F	-40 °F	-40 °C	105 °C	1 Box	Do It Yourself (DIY) Plunger Style	Hook	20 AWG Wire	2.35 "	59.69 mm	0.09 in	2.29 mm	Black	Standard
Mueller Electric Co BU-P3925-5	221 °F	-40 °F	-40 °C	105 °C	1 Box	Do It Yourself (DIY) Plunger Style	Hook	20 AWG Wire	2.35 "	59.69 mm	0.09 in	2.29 mm	Green	Standard
Mueller Electric Co BU-P3925-6	221 °F	-40 °F	-40 °C	105 °C	1 Box	Do It Yourself (DIY) Plunger Style	Hook	20 AWG Wire	2.35 "	59.69 mm	0.09 in	2.29 mm	Blue	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

White Standard Solder, 0.090" (2.29mm) Wire Opening Features Do It Yourself (DIY), Plunger Style
