YB15WRKG01-6G-JB

Active

NKK Switches

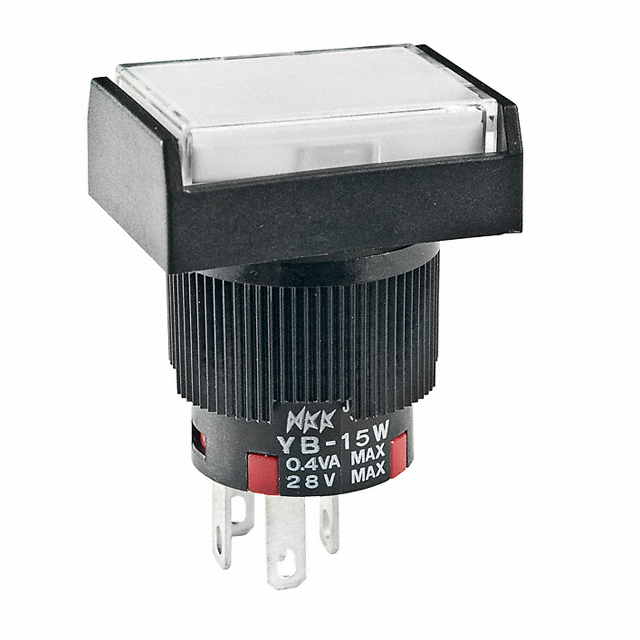

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB15WRKG01-6G-JB

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB15WRKG01-6G-JB

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Tactile Feedback
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	3.6 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

YB15WR Series

Part	Actuator Type	Actuator Marking	Illumination Voltage (Nominal)	Features	Electrical Life	Type	Panel Cutout Dimensions [diameter]	Circuit	Current Rating (Amps)	Illumination Type, Color	Voltage Rating - DC	Termination Style	Termination Style	Termination Style	Mounting Type	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Switch Function	Color - Actuator/Cap	Ingress Protection
NKK Switches YB15WRKG01-6B-JB	Rectangular Button	No Marking	3.3 VDC	Tactile Feedback	100000 Cycles	Illuminated Standard	16 mm	SPDT	0.4 VA	LED White	28 V	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	1000000 Cycles	50 °C	-25 °C	28 V	On-Mom	Clear	IP65 - Dust Tight Water Resistant
NKK Switches YB15WRKG01-5F05-JF	Rectangular Button	No Marking	5 VDC	Tactile Feedback	100000 Cycles	Illuminated Standard	16 mm	SPDT	0.4 VA	Green LED	28 V	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	1000000 Cycles	50 °C	-25 °C	28 V	On-Mom	Clear	IP65 - Dust Tight Water Resistant
NKK Switches YB15WRKW01-1C24-JC	Rectangular Button	No Marking	24 V	Tactile Feedback	100000 Cycles	Illuminated Standard	16 mm	SPDT	3 A	LED Red	30 V	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	1000000 Cycles	50 °C	-25 °C	125 V	On-Mom	Clear (Red Filter/Diffuser)	IP65 - Dust Tight Water Resistant
NKK Switches YB15WRKG01/U-1F24-JF	Rectangular Button	No Marking	24 V	Tactile Feedback	100000 Cycles	Illuminated Standard	16 mm	SPDT	0.4 VA	Green LED	28 V	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	1000000 Cycles	50 °C	-25 °C	28 V	On-Mom	Clear	IP65 - Dust Tight Water Resistant
NKK Switches YB15WRKW01-6G-JB	Rectangular Button	No Marking	3.6 VDC	Tactile Feedback	100000 Cycles	Illuminated Standard	16 mm	SPDT	3 A	Blue LED	30 V	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	1000000 Cycles	50 °C	-25 °C	125 V	On-Mom	Clear	IP65 - Dust Tight Water Resistant
NKK Switches YB15WRKW01-2CF02-JB	Rectangular Button	No Marking	2 VDC	Tactile Feedback	100000 Cycles	Illuminated Standard	16 mm	SPDT	3 A	Green/Red LED	30 V	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	1000000 Cycles	50 °C	-25 °C	125 V	On-Mom	Clear	IP65 - Dust Tight Water Resistant
NKK Switches YB15WRKW01	Plunger for Cap	No Marking		Tactile Feedback	100000 Cycles	Standard	16 mm	SPDT	3 A		30 V	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	1000000 Cycles	70 °C	-25 °C	125 V	On-Mom		IP65 - Dust Tight Water Resistant
NKK Switches YB15WRKG01-5D-JD	Rectangular Button	No Marking	2 VDC	Tactile Feedback	100000 Cycles	Illuminated Standard	16 mm	SPDT	0.4 VA	Amber LED	28 V	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	1000000 Cycles	50 °C	-25 °C	28 V	On-Mom	Clear	IP65 - Dust Tight Water Resistant
NKK Switches YB15WRKG01-6G-JB	Rectangular Button	No Marking	3.6 VDC	Tactile Feedback	100000 Cycles	Illuminated Standard	16 mm	SPDT	0.4 VA	Blue LED	28 V	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	1000000 Cycles	50 °C	-25 °C	28 V	On-Mom	Clear	IP65 - Dust Tight Water Resistant
NKK Switches YB15WRKW01-1C05-JC	Rectangular Button	No Marking	5 VDC	Tactile Feedback	100000 Cycles	Illuminated Standard	16 mm	SPDT	3 A	LED Red	30 V	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	1000000 Cycles	50 °C	-25 °C	125 V	On-Mom	Clear (Red Filter/Diffuser)	IP65 - Dust Tight Water Resistant
