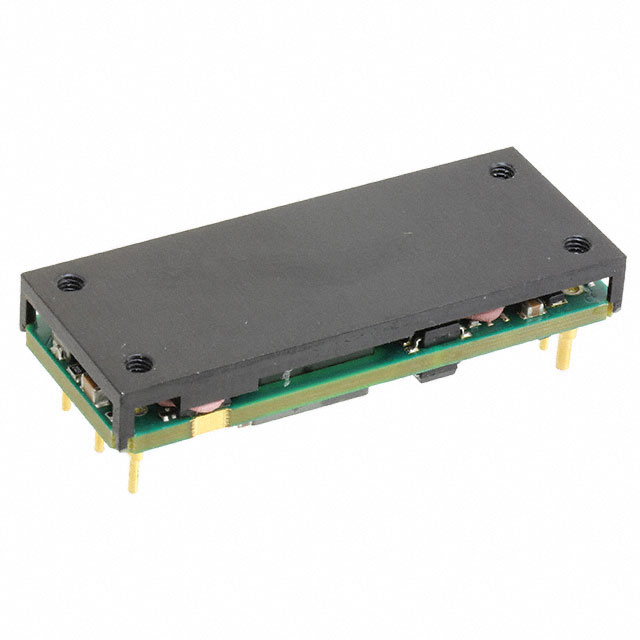

UEE-12/12.5-D48NBH-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 150W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UEE-12/12.5-D48NBH-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 150W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UEE-12/12.5-D48NBH-C | UEE-12 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | - | Active High, Enable, Active Low |
| Current - Output (Max) [Max] | 12.5 A | 12.5 A |
| Efficiency | 93 % | 93 % |
| Features | - | OCP, UVLO, OTP, Remote On/Off, SCP, OVP |
| Mounting Type | Through Hole | Surface Mount, Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Eighth Brick | 1/8 Brick, 8-SMD Module, Eighth Brick, 8-DIP Module |
| Power (Watts) | 150 W | 150 W |
| Size / Dimension [x] | 58.4 mm | 58.4 mm |
| Size / Dimension [x] | 2.3 in | 2.3 in |
| Size / Dimension [y] | 22.9 mm | 22.9 mm |
| Size / Dimension [y] | 0.9 " | 0.9 " |
| Size / Dimension [z] | 12.7 mm | 10.7 - 12.7 mm |
| Size / Dimension [z] | 0.5 in | 0.42 - 0.5 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 75 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 12 V | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
UEE-12 Series
DC DC CONVERTER 12V 150W
| Part | Mounting Type | Voltage - Input (Max) [Max] | Number of Outputs | Voltage - Isolation | Type | Control Features | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Voltage - Output 1 | Applications | Efficiency | Features | Current - Output (Max) [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UEE-12/12.5-D48PM-C | Surface Mount | 75 V | 1 | 2250 VDC | Isolated Module | Active High, Enable | 36 V | 85 °C | -40 °C | 0.9 " | 0.42 in | 10.7 mm | 58.4 mm | 22.9 mm | 2.3 in | 150 W | 12 V | ITE (Commercial) | 93 % | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 12.5 A | 1/8 Brick, 8-SMD Module |
Murata Power Solutions Inc. UEE-12/12.5-D48NBH-C | Through Hole | 75 V | 1 | 2250 VDC | Isolated Module | 36 V | 85 °C | -40 °C | 0.9 " | 0.5 in | 12.7 mm | 58.4 mm | 22.9 mm | 2.3 in | 150 W | 12 V | ITE (Commercial) | 93 % | 12.5 A | Eighth Brick | ||
Murata Power Solutions Inc. UEE-12/12.5-D48NB-C | ||||||||||||||||||||||
Murata Power Solutions Inc. UEE-12/12.5-D48NB-C | Through Hole | 75 V | 1 | 2250 VDC | Isolated Module | Active Low, Enable | 36 V | 85 °C | -40 °C | 0.9 " | 0.5 in | 12.7 mm | 58.4 mm | 22.9 mm | 2.3 in | 150 W | 12 V | ITE (Commercial) | 93 % | OCP, OTP, Remote On/Off, SCP, UVLO | 12.5 A | 8-DIP Module |
Description
General part information
UEE-12 Series
Isolated Module DC DC Converter 1 Output 12V 12.5A 36V - 75V Input
