770328-1

Obsolete

TE Connectivity AMP Connectors

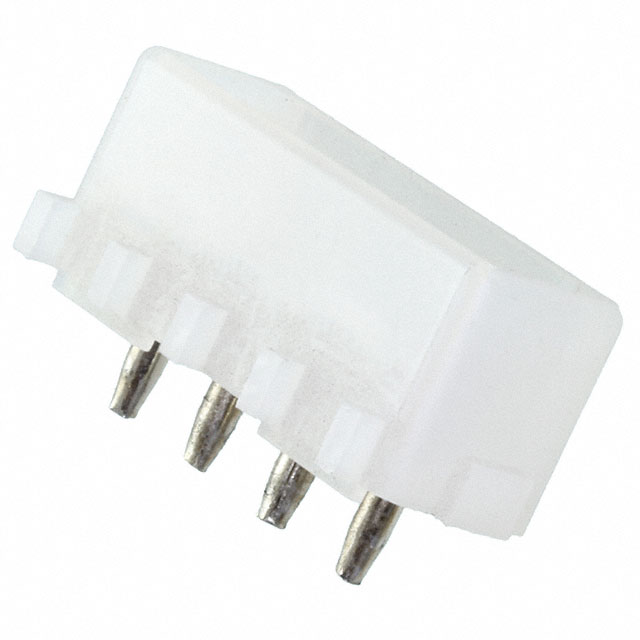

CONN HEADER VERT 4POS 5.08MM

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 5.08MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	770328-1	770328 Series

Connector Type	Header	Header
Contact Finish - Mating	Tin-Lead	Tin-Lead
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	2.03 µm	2.03 µm
Contact Finish Thickness - Mating	80 µin	80 µin
Contact Finish Thickness - Post	2.03 µm	2.03 µm
Contact Finish Thickness - Post	80 µin	80 µin
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	12 A	12 A
Fastening Type	Detent Lock	Detent Lock
Insulation Color	Natural	Natural
Insulation Height	0.375 in	0.375 in
Insulation Height	9.53 mm	9.53 mm
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2	UL94 V-2
Mounting Type	Through Hole	Through Hole
Number of Positions	4	4
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	5.08 mm	5.08 mm
Pitch - Mating	0.2 in	0.2 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

CONN HEADER VERT 4POS 5.08MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Number of Positions	Contact Type	Current Rating (Amps)	Style	Insulation Material	Contact Finish - Post	Number of Positions Loaded	Insulation Color	Contact Finish - Mating	Contact Material	Mounting Type	Fastening Type	Voltage Rating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Termination	Material Flammability Rating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type
TE Connectivity AMP Connectors 1-770328-1	105 ░C	-55 °C	Shrouded - 4 Wall	4	Male Pin	12 A	Board to Cable/Wire	Nylon, Polyamide (PA)	Tin-Lead	All	Natural	Tin-Lead	Copper Alloy	Through Hole	Detent Lock	250 VAC	5.08 mm	0.2 in	0.375 in	9.53 mm	Solder	UL94 V-2	Circular	2.03 µm	80 µin	1	2.03 µm	80 µin	Header
TE Connectivity AMP Connectors 770328-1	105 ░C	-55 °C	Shrouded - 4 Wall	4	Male Pin	12 A	Board to Cable/Wire	Nylon, Polyamide (PA)	Tin-Lead	All	Natural	Tin-Lead	Copper Alloy	Through Hole	Detent Lock	250 VAC	5.08 mm	0.2 in	0.375 in	9.53 mm	Solder	UL94 V-2	Circular	2.03 µm	80 µin	1	2.03 µm	80 µin	Header

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 4 position 0.200" (5.08mm)
