19101-08UL

Active

Grayhill Inc.

SWITCH ROTARY 8POS 15A 120V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY 8POS 15A 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH ROTARY 8POS 15A 120V

Part	Contact Material	Termination Style	Number of Decks [custom]	Index Stops	Voltage Rating - AC	Voltage Rating - DC	Number of Positions	Current Rating (Amps)	Depth Behind Panel [z]	Contact Timing	Angle of Throw	Number of Poles per Deck	Actuator Type [diameter]	Actuator Type	Actuator Length [x]	Circuit per Deck	Circuit per Deck [custom]
Grayhill Inc. 19101-08UL	Silver Alloy	Quick Connect - 0.250" (6.3mm)	1	Fixed	120 V	120 V	8	15A, 1A	24.13 mm	Non-Shorting	30 °	1	6.35 mm	Flatted	0.5 in	SP8T
Grayhill Inc. 19101-06UL	Silver Alloy	Quick Connect - 0.250" (6.3mm)	1	Fixed	120 V	120 V	6	15A, 1A	24.13 mm	Non-Shorting	30 °	1	6.35 mm	Flatted	0.5 in	SP6T
Grayhill Inc. 19101-02UL	Silver Alloy	Quick Connect - 0.250" (6.3mm)	1	Fixed	120 V	120 V	2	15A, 1A	24.13 mm	Non-Shorting	30 °	1	6.35 mm	Flatted	0.5 in	SPDT
Grayhill Inc. 19101-03UL	Silver Alloy	Quick Connect - 0.250" (6.3mm)	1	Fixed	120 V	120 V		15A, 1A	24.13 mm	Non-Shorting	30 °	1	6.35 mm	Flatted	0.5 in	SP3T
Grayhill Inc. 19101-07UL	Silver Alloy	Quick Connect - 0.250" (6.3mm)	1	Fixed	120 V	120 V	7	15A, 1A	24.13 mm	Non-Shorting	30 °	1	6.35 mm	Flatted	0.5 in	SP7T
Grayhill Inc. 19101-11UL	Silver Alloy	Quick Connect - 0.250" (6.3mm)	1	Fixed	120 V	120 V	11	15A, 1A	24.13 mm	Non-Shorting	30 °	1	6.35 mm	Flatted	0.5 in		SP11T

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

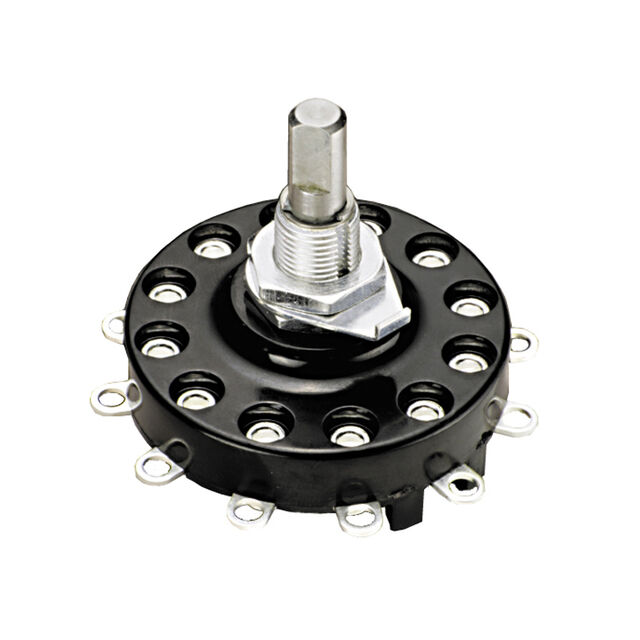

Rotary Switch 8 Position SP8T 15A (AC), 1A (DC) 120 VAC Panel Mount
