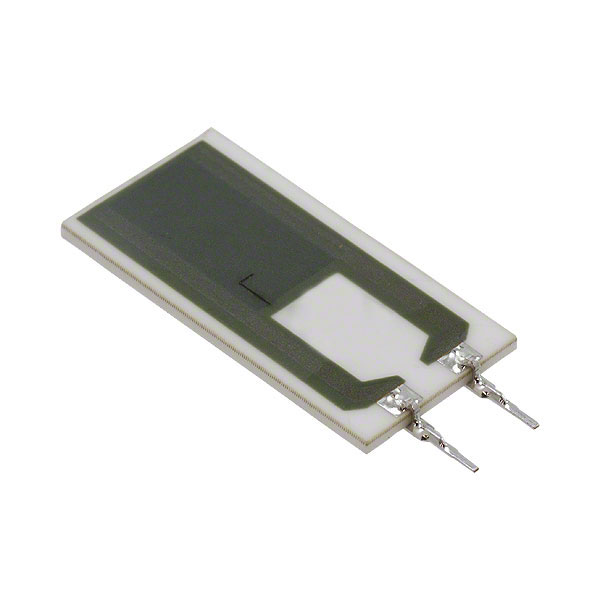

MPC52202J

Active

TE Connectivity Passive Product

RES 2K OHM 5% 5W RADIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 2K OHM 5% 5W RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	MPC52202J

Composition	Thick Film
Features	Safety, Non-Inductive, Flame Proof
Height - Seated (Max) [Max] [z]	25.4 mm
Height - Seated (Max) [Max] [z]	25.4 mm
Number of Terminations	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Power (Watts)	5 W
Resistance	2 kOhms
Size / Dimension [x]	0.5 in
Size / Dimension [x]	12.7 mm
Size / Dimension [y]	2.54 mm
Size / Dimension [y]	0.1 in
Temperature Coefficient	100 ppm/°C
Tolerance	5 %

Part	Resistance	Composition	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Features	Power (Watts)	Number of Terminations	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Passive Product MPC52100J	10 Ohms	Thick Film	100 ppm/°C	2.54 mm	0.1 in	0.5 in	12.7 mm	Radial	Flame Proof Non-Inductive Safety	5 W	2	5 %	25.4 mm	25.4 mm	-55 °C	125 °C
TE Connectivity Passive Product MPC52502J	5 kOhms	Thick Film	100 ppm/°C	2.54 mm	0.1 in	0.5 in	12.7 mm	Radial	Flame Proof Non-Inductive Safety	5 W	2	5 %	25.4 mm	25.4 mm	-55 °C	125 °C
TE Connectivity Passive Product MPC52500J	50 Ohms	Thick Film	100 ppm/°C	2.54 mm	0.1 in	0.5 in	12.7 mm	Radial	Flame Proof Non-Inductive Safety	5 W	2	5 %	25.4 mm	25.4 mm	-55 °C	125 °C
TE Connectivity Passive Product MPC52202J	2 kOhms	Thick Film	100 ppm/°C	2.54 mm	0.1 in	0.5 in	12.7 mm	Radial	Flame Proof Non-Inductive Safety	5 W	2	5 %	25.4 mm	25.4 mm	-55 °C	125 °C
TE Connectivity Passive Product MPC52101J	100 Ohms	Thick Film	100 ppm/°C	2.54 mm	0.1 in	0.5 in	12.7 mm	Radial	Flame Proof Non-Inductive Safety	5 W	2	5 %	25.4 mm	25.4 mm	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 2.19

General part information

2 kOhms ±5% 5W Through Hole Resistor Radial Flame Proof, Non-Inductive, Safety Thick Film

Technical documentation and resources

No documents available
