737-032-525-101
ActiveEDAC Inc.

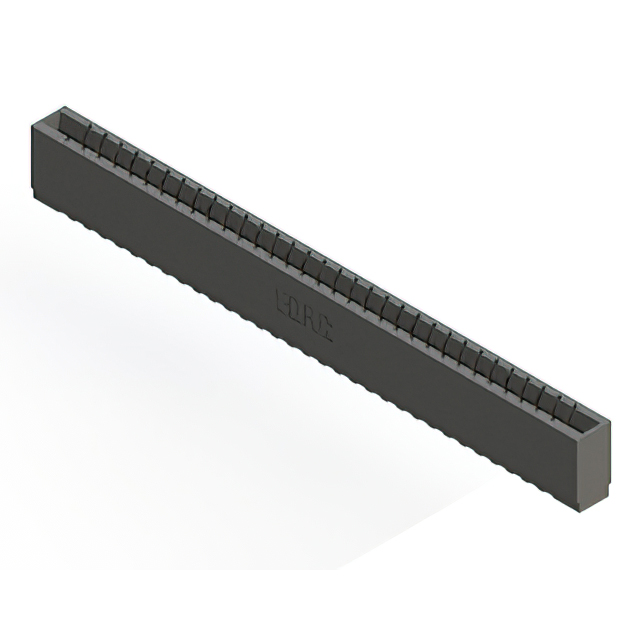

CONN EDGE SGL FMALE 32POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
737-032-525-101
ActiveEDAC Inc.
CONN EDGE SGL FMALE 32POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 737-032-525-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 32 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Press-Fit |
| Termination Rows | 1 |
737-032 Series
| Part | Contact Material | Color | Pitch [x] | Pitch [x] | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Gender | Number of Positions/Bay/Row [custom] | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Termination | Mounting Type | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | Black | 0.156 in | 3.96 mm | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 32 | Cantilever | 0.76 Ám | 30 Áin | Single | Press-Fit Wire Wrap | Through Hole | 1 |
EDAC Inc. | Copper Alloy | Black | 0.156 in | 3.96 mm | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 16 | Cantilever | 0.76 Ám | 30 Áin | Dual | Press-Fit Wire Wrap | Through Hole | 2 |
EDAC Inc. | Copper Alloy | Black | 0.156 in | 3.96 mm | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 16 | Cantilever Make Before Break | 0.76 Ám | 30 Áin | Dual | Press-Fit | Through Hole | 2 |
EDAC Inc. | Copper Alloy | Black | 0.156 in | 3.96 mm | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 16 | Cantilever | 0.76 Ám | 30 Áin | Dual | Press-Fit | Through Hole | 2 |
EDAC Inc. | Copper Alloy | Black | 0.156 in | 3.96 mm | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 32 | Cantilever | 0.76 Ám | 30 Áin | Single | Press-Fit | Through Hole | 1 |
EDAC Inc. | Copper Alloy | Black | 0.156 in | 3.96 mm | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 32 | Cantilever | 0.76 Ám | 30 Áin | Single | Press-Fit | Through Hole | 1 |
EDAC Inc. | Copper Alloy | Black | 0.156 in | 3.96 mm | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 16 | Cantilever | 0.76 Ám | 30 Áin | Dual | Press-Fit | Through Hole | 2 |
EDAC Inc. | Copper Alloy | Black | 0.156 in | 3.96 mm | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 32 | Cantilever | 0.76 Ám | 30 Áin | Single | Press-Fit | Through Hole | 1 |
EDAC Inc. | Copper Alloy | Black | 0.156 in | 3.96 mm | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 32 | Cantilever | 0.76 Ám | 30 Áin | Single | Press-Fit Wire Wrap | Through Hole | 1 |
EDAC Inc. | Copper Alloy | Black | 0.156 in | 3.96 mm | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 32 | Cantilever | 0.76 Ám | 30 Áin | Single | Press-Fit | Through Hole | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 9.49 | |
Description
General part information
737-032 Series
32 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
