2903694

Active

Phoenix Contact

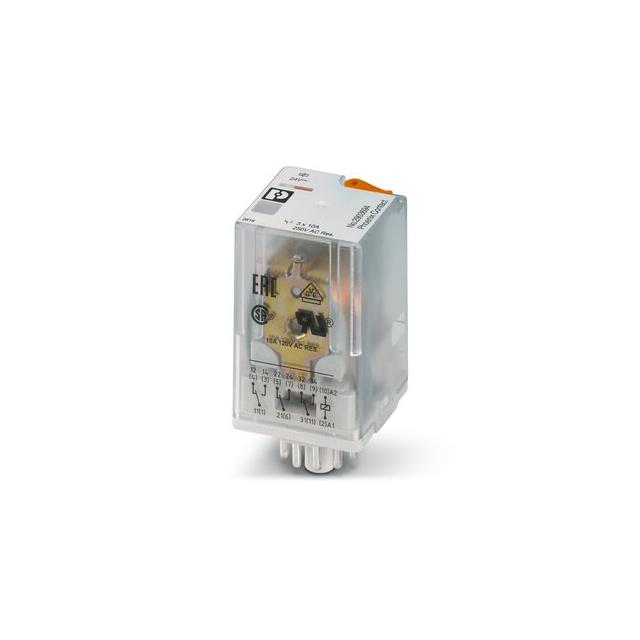

RELAY GEN PURPOSE 3PDT 10A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2903694

Active

Phoenix Contact

RELAY GEN PURPOSE 3PDT 10A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	10	$ 12.40

Description

General part information

29036 Series

General Purpose Relay 3PDT (3 Form C) 24VAC Coil Socketable

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2903694	29036 Series

Approval Agency	-	VDE, UL, EAC, cULus, UR, CSA, cURus, cUL
Coil Current	108 mA	4 - 116 mA
Coil Resistance	222 Ohms	2.2 - 571.4 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VAC	12 - 230 VAC
Contact Form	3PDT (3 Form C)	DPDT (2 Form C), 3PDT (3 Form C), 4PDT (4 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	10 A	6 - 16 A
Features	-	Lighted Indicator, Diode, Test Button, Mechanical Indicator
Load - Max Switching	-	4000 - 7040 W
Mounting Type	Socketable	Socketable
Operate Time	15 ms	13 - 25 ms
Operating Temperature [Max]	55 °C	55 - 70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	20 ms	14 - 20 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Plug In, 8 Pin (Octal)	Plug In, 8 Pin (Octal), Plug In, Plug In, 11 Pin (Octal)

29036 Series

RELAY GEN PURPOSE DPDT 10A 230V

Part	Coil Type	Release Time	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Operate Time	Relay Type	Coil Voltage	Termination Style	Contact Rating (Current)	Contact Form	Coil Resistance	Mounting Type	Coil Current	Approval Agency	Features	Load - Max Switching
Phoenix Contact 2903692	Non Latching	20 ms	250 VAC, 250 VDC	-40 °C	55 °C	Silver Nickel (AgNi)	15 ms	General Purpose	230 VAC	Plug In, 8 Pin (Octal)	10 A	DPDT (2 Form C)	17.69 kOhms	Socketable	13 mA
Phoenix Contact 2903664	Non Latching	14 ms	250 VAC, 250 VDC	-40 °C	70 °C	Silver Nickel (AgNi)	13 ms	General Purpose	125 VDC	Plug In	12 A	DPDT (2 Form C)	16.2 kOhms	Socketable	7.7 mA	cULus, EAC, UL, VDE	Diode, Lighted Indicator, Test Button
Phoenix Contact 2903690	Non Latching	20 ms	250 VAC, 250 VDC	-40 °C	55 °C	Silver Nickel (AgNi)	15 ms	General Purpose	24 VAC	Plug In, 8 Pin (Octal)	10 A	DPDT (2 Form C)	222 Ohms	Socketable	108 mA
Phoenix Contact 2903694	Non Latching	20 ms	250 VAC, 250 VDC	-40 °C	55 °C	Silver Nickel (AgNi)	15 ms	General Purpose	24 VAC	Plug In, 8 Pin (Octal)	10 A	3PDT (3 Form C)	222 Ohms	Socketable	108 mA
Phoenix Contact 2903681	Non Latching	14 ms	250 VAC, 250 VDC	-40 °C	70 °C	Silver Nickel (AgNi)	13 ms	General Purpose	125 VDC	Plug In	6 A	4PDT (4 Form C)	16.2 kOhms	Socketable	7.7 mA	cULus, EAC, UL, VDE	Diode, Lighted Indicator, Test Button
Phoenix Contact 2903671	Non Latching	14 ms	250 VAC, 250 VDC	-40 °C	70 °C	Gold (Au), Silver Nickel (AgNi)	13 ms	General Purpose	48 VDC	Plug In	6 A	4PDT (4 Form C)	2.2 kOhms	Socketable	22 mA	cULus, EAC, UL, VDE	Diode, Lighted Indicator, Mechanical Indicator, Test Button
Phoenix Contact 2903691	Non Latching	20 ms	250 VAC, 250 VDC	-40 °C	55 °C	Silver Nickel (AgNi)	15 ms	General Purpose	120 VAC	Plug In, 8 Pin (Octal)	10 A	DPDT (2 Form C)	5.22 kOhms	Socketable	23 mA
Phoenix Contact 2903670	Non Latching	14 ms	250 VAC, 250 VDC	-40 °C	70 °C	Gold (Au), Silver Nickel (AgNi)	13 ms	General Purpose	24 VDC	Plug In	6 A	4PDT (4 Form C)	571.4 Ohms	Socketable	42 mA	cULus, EAC, UL, VDE	Diode, Lighted Indicator, Mechanical Indicator, Test Button
Phoenix Contact 2903660	Non Latching	14 ms	250 VAC, 250 VDC	-40 °C	70 °C	Silver Nickel (AgNi)	13 ms	General Purpose	24 VDC	Plug In	12 A	DPDT (2 Form C)	571 Ohms	Socketable	42 mA	cULus, EAC, UL, VDE	Diode, Lighted Indicator, Mechanical Indicator, Test Button
Phoenix Contact 2903699	Non Latching	20 ms		-40 °C	55 °C	Silver Nickel (AgNi)	25 ms	General Purpose	24 VAC	Plug In	16 A	DPDT (2 Form C)	207 Ohms	Socketable	116 mA	CSA, cURus, EAC, UR		4000 W, 7040 VA
