HS2P7F26
ActiveSwitchcraft Inc.

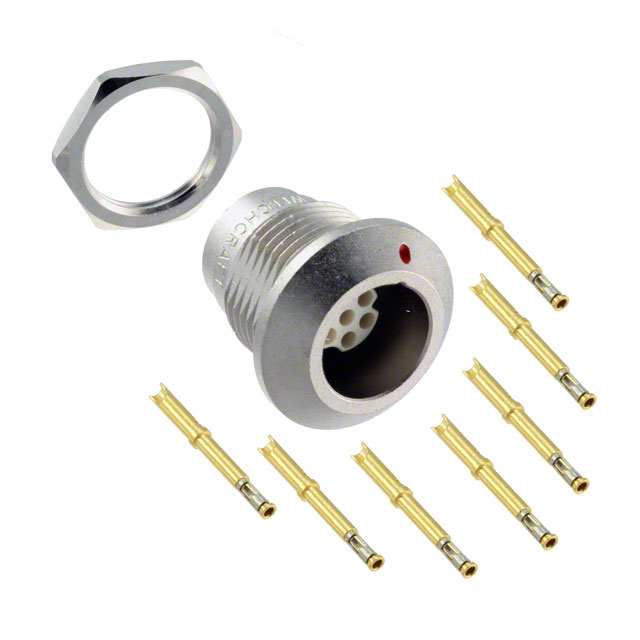

CONN RCPT FMALE 7POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HS2P7F26
ActiveSwitchcraft Inc.
CONN RCPT FMALE 7POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HS2P7F26 | HS2P7F Series |
|---|---|---|
| Applications | Audio, Testing Equipment & Measurement, Agriculture, Medical, General | Audio, Testing Equipment & Measurement, Agriculture, Medical, General |
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 HF-1 | UL94 HF-1 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Number of Positions | 7 | 7 |
| Operating Temperature [Max] | 135 °C | 135 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Electroless Nickel | Electroless Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shielding | Shielded | Shielded |
| Termination | Crimp, Solder Cup | Crimp, Solder Cup, Solder |
| Voltage Rating | 30 VAC | 30 VAC |
HS2P7F Series
CONN RCPT FMALE 7POS GOLD CRIMP
| Part | Fastening Type | Voltage Rating | Termination | Number of Positions | Mounting Feature | Orientation | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Color | Contact Material | Primary Material | Contact Finish - Mating | Applications | Shielding | Ingress Protection | Shell Finish | Connector Type | Shell Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. HS2P7F26 | Push-Pull | 30 VAC | Crimp, Solder Cup | 7 | Bulkhead - Rear Side Nut | Keyed | Liquid Crystal Polymer (LCP) | 135 °C | -40 °C | UL94 HF-1 | Silver | Copper Alloy | Metal | Gold | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | Shielded | IP66, IP67, IP68 | Electroless Nickel | Receptacle, Female Sockets | Copper Alloy | |
Switchcraft Inc. HS2P7F26-BP | Push-Pull | 30 VAC | Solder | 7 | Bulkhead - Front Side Nut | Keyed | Liquid Crystal Polymer (LCP) | 135 °C | -40 °C | Silver | Copper Alloy | Metal | Gold | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | Shielded | IP66, IP67, IP68 | Electroless Nickel | Receptacle, Female Sockets | Copper Alloy | Panel Mount, Through Hole | |
Switchcraft Inc. HS2P7F26-BPE | Push-Pull | 30 VAC | Solder | 7 | Bulkhead - Front Side Nut | Keyed | Liquid Crystal Polymer (LCP) | 135 °C | -40 °C | Silver | Copper Alloy | Metal | Gold | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | Shielded | IP66, IP67, IP68 | Electroless Nickel | Receptacle, Female Sockets | Copper Alloy | Panel Mount, Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 19.75 | |
Description
General part information
HS2P7F Series
7 Position Circular Connector Receptacle, Female Sockets Crimp or Solder Cup
