HS2P7F26-BP

Active

Switchcraft Inc.

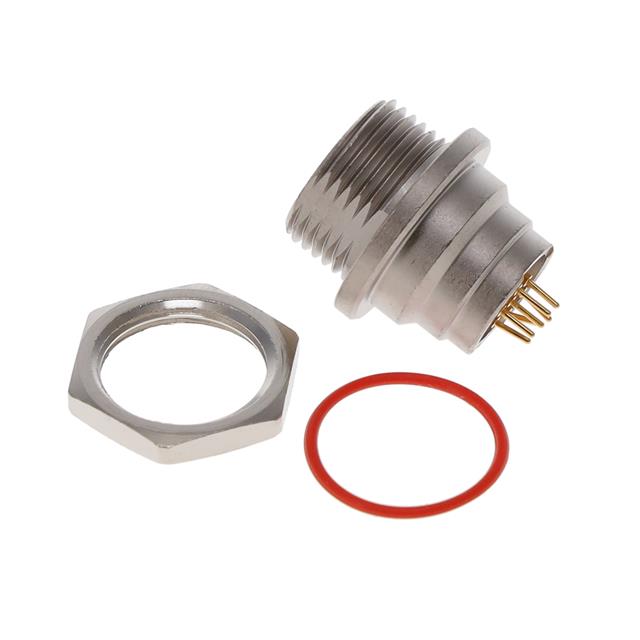

CONN RCPT FMALE 7POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 7POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HS2P7F26-BP	HS2P7F Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	-	UL94 HF-1
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	7	7
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Crimp, Solder Cup, Solder
Voltage Rating	30 VAC	30 VAC

CONN RCPT FMALE 7POS GOLD CRIMP

Part	Fastening Type	Voltage Rating	Termination	Number of Positions	Mounting Feature	Orientation	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Color	Contact Material	Primary Material	Contact Finish - Mating	Applications	Shielding	Ingress Protection	Shell Finish	Connector Type	Shell Material	Mounting Type
Switchcraft Inc. HS2P7F26	Push-Pull	30 VAC	Crimp, Solder Cup	7	Bulkhead - Rear Side Nut	Keyed	Liquid Crystal Polymer (LCP)	135 °C	-40 °C	UL94 HF-1	Silver	Copper Alloy	Metal	Gold	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Shielded	IP66, IP67, IP68	Electroless Nickel	Receptacle, Female Sockets	Copper Alloy
Switchcraft Inc. HS2P7F26-BP	Push-Pull	30 VAC	Solder	7	Bulkhead - Front Side Nut	Keyed	Liquid Crystal Polymer (LCP)	135 °C	-40 °C		Silver	Copper Alloy	Metal	Gold	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Shielded	IP66, IP67, IP68	Electroless Nickel	Receptacle, Female Sockets	Copper Alloy	Panel Mount, Through Hole
Switchcraft Inc. HS2P7F26-BPE	Push-Pull	30 VAC	Solder	7	Bulkhead - Front Side Nut	Keyed	Liquid Crystal Polymer (LCP)	135 °C	-40 °C		Silver	Copper Alloy	Metal	Gold	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Shielded	IP66, IP67, IP68	Electroless Nickel	Receptacle, Female Sockets	Copper Alloy	Panel Mount, Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder
