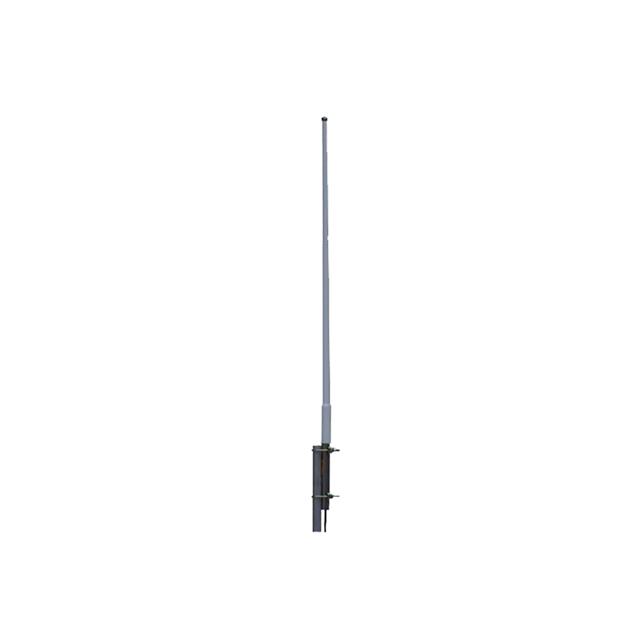

OD9-11D1
ActiveTE Connectivity Raychem Cable Protection
OMNI,VPOL,FIXED,NF 890-960 MHZ,11,1 DEGD
Deep-Dive with AI
Search across all available documentation for this part.
OD9-11D1
ActiveTE Connectivity Raychem Cable Protection
OMNI,VPOL,FIXED,NF 890-960 MHZ,11,1 DEGD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OD9-11D1 |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | WiMax™ |
| Frequency (Center/Band) | 910 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 960 MHz |
| Frequency Range [Min] | 860 MHz |
| Gain | 11 dB |
| Height (Max) | 340 cm |
| Height (Max) [Max] [z] | 133.858 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 100 W |
| RF Family/Standard | WiFi |
| Termination | N Type Female |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 377.27 | |
| 10 | $ 365.92 | |||
| 25 | $ 363.09 | |||
Description
General part information
OD9-11 Series
Baton/Stick Antenna, Single Band, ISM / LoRaWAN, External Mount, Pole/Mast/Bracket Mount, N-type, Omnidirectional, Single Port, > 6 dBi Peak Gain
