FGS.0F.303.XLM

Active

LEMO

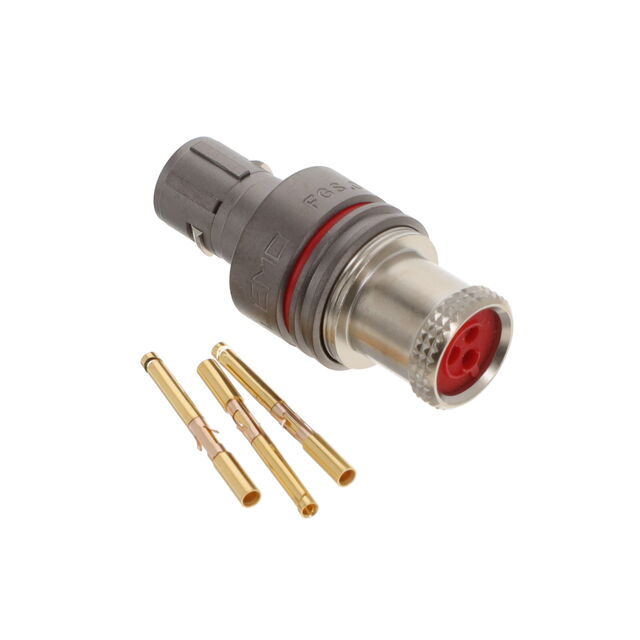

CONN PLUG FMALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG FMALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FGS.0F.303.XLM	FGS.0F Series

Applications	Aerospace	Aerospace
Cable Opening [custom]	0.354 in	0.354 in
Cable Opening [custom]	9 mm	9 mm
Color	Gray	Gray
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	8 A	6.5 - 10 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	-	2
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-15 °C	-15 °C
Orientation	S	S
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	303	302 - 305
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN PLUG FMALE 2POS GOLD CRIMP

Part	Color	Primary Material	Termination	Current Rating (Amps)	Fastening Type	Shielding	Ingress Protection	Mounting Type	Shell Finish	Contact Finish - Mating	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Material Flammability Rating	Shell Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Shell Size - Insert	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Connector Type
LEMO FGS.0F.302.XLM	Gray	Metal	Crimp	10 A	Push-Pull	Shielded	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Nickel	Gold	2	0.354 in	9 mm	UL94 V-0	Aluminum Alloy	Aerospace	200 °C	-15 °C	Polyetheretherketone (PEEK)	302	Bronze	59 Áin	1.5 Ám	S	Female Sockets, Plug
LEMO FGS.0F.303.XLM	Gray	Metal	Crimp	8 A	Push-Pull	Shielded	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Nickel	Gold		0.354 in	9 mm	UL94 V-0	Aluminum Alloy	Aerospace	200 °C	-15 °C	Polyetheretherketone (PEEK)	303	Bronze	59 Áin	1.5 Ám	S	Female Sockets, Plug
LEMO FGS.0F.305.YLM	Gray	Metal	Crimp	6.5 A	Push-Pull	Shielded	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Nickel	Gold		0.354 in	9 mm	UL94 V-0	Aluminum Alloy	Aerospace	200 °C	-15 °C	Polyetheretherketone (PEEK)	305	Bronze	59 Áin	1.5 Ám	S	Female Sockets, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Crimp
