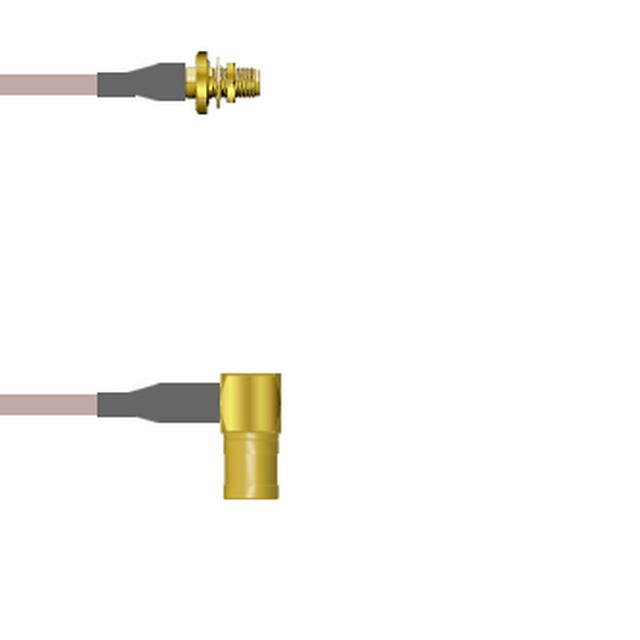

Q-2U03R0001.25M

Active

Amphenol Custom Cable

CBL ASSY SMA-SMB JACK-PLG 9.843"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMA-SMB JACK-PLG 9.843"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2U03R0001.25M

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMB Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	SMA to SMB

Part	2nd Contact Gender	1st Connector Mounting Feature	1st Connector	Style	Cable Type	Connector Impedance	Color	Frequency - Max [Max]	Features	2nd Connector	1st Contact Gender	Cable Impedance	Overall Impedance	Length	Length	1st Connector Mounting Type	2nd Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-2U03R0001003I	Female	Bulkhead - Front Side Nut	SMA Jack	SMA to SMB	RG-178	50 Ohms	Copper	3 GHz	Shielded	SMB Plug Right Angle	Female	50 Ohms	50 Ohms	3 in	76.2 mm	Panel Mount	Free Hanging (In-Line)
Amphenol Custom Cable Q-2U03R0001.25M	Female	Bulkhead - Front Side Nut	SMA Jack	SMA to SMB	RG-178	50 Ohms	Copper	3 GHz	Shielded	SMB Plug Right Angle	Female	50 Ohms	50 Ohms			Panel Mount	Free Hanging (In-Line)	9.843 "	250 mm
Amphenol Custom Cable Q-2U03R00010.5M	Female	Bulkhead - Front Side Nut	SMA Jack	SMA to SMB	RG-178	50 Ohms	Copper	3 GHz	Shielded	SMB Plug Right Angle	Female	50 Ohms	50 Ohms	19.69 "	50 cm	Panel Mount	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMB RG-178 9.843" (250.00mm)
