06S132-S00S3

Active

Rosenberger

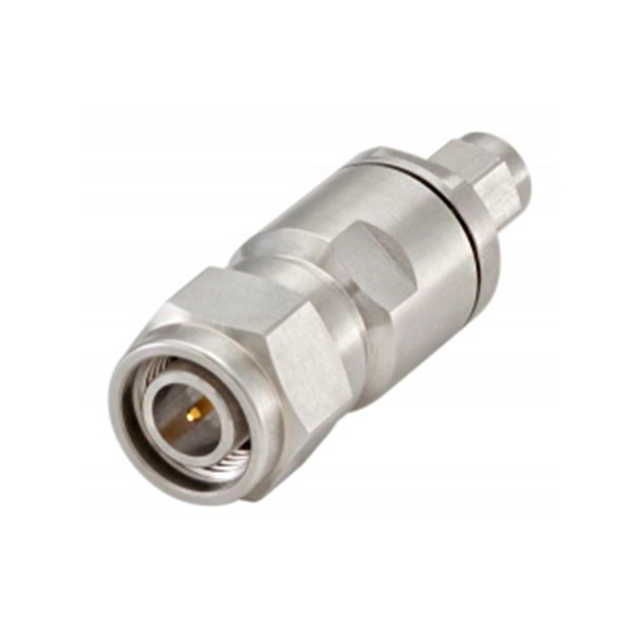

PRECISION TNC ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION TNC ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	06S132-S00S3

Adapter Series	RJC-TNC to SMA
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polyphenylene Ether (PPE), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Insertion Loss	0.42 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Mating Cycles	Adapter Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Convert To (Adapter End)	Center Contact Material	Adapter Series	Conversion Type	Style	Center Gender	Dielectric Material	Impedance	Frequency - Max [Max]	Insertion Loss	Center Contact Plating	Body Material
Rosenberger 06S132-S00S3	500	Plug to Plug	85 °C	-40 °C	Free Hanging (In-Line)	Male Pin SMA Plug	Beryllium Copper	RJC-TNC to SMA	Between Series	Straight	Male to Male	Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE)	50 Ohms	18 GHz	0.42 dB	Gold	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 427.46

General part information

Adapter Coaxial Connector TNC Plug, Male Pin To SMA Plug, Male Pin 50 Ohms
