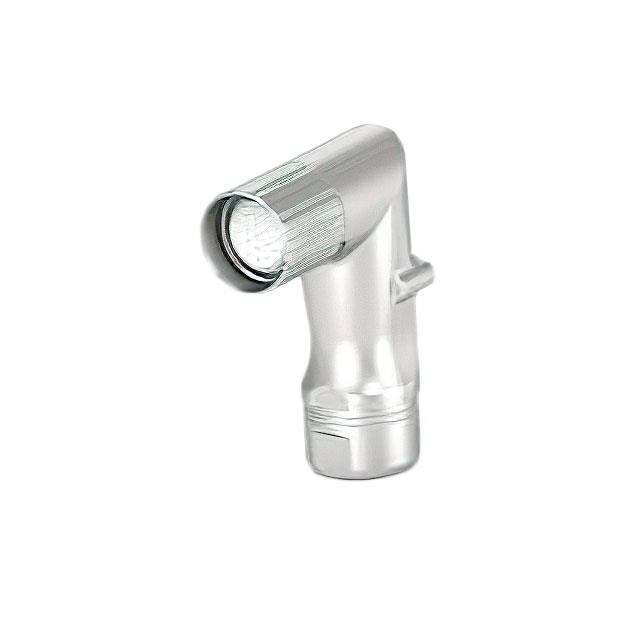

AUA558N00420150000

Active

TE Intercontec

CONN PLG HSG FMALE 19POS RA

Search across all available documentation for this part.

Active

TE Intercontec

CONN PLG HSG FMALE 19POS RA

Technical Specifications

Parameters and characteristics for this part

Specification	AUA558N00420150000

Connector Type	Plug Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Backshell, Rotatable, Coupling Nut, Cable Clamp
Housing Color	Silver
Includes	1 Backshell, 1 Connector, 1 Cable Clamp
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shielding	Shielded
Type	For Female Sockets

Part	Material Flammability Rating	Connector Type	Housing Color	Features	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Mounting Type	Contact Shape	Shielding	Type	Includes	Fastening Type	Number of Positions	Note	Orientation	Ingress Protection	Insert Material
TE Intercontec AUA558N00420150000	UL94 V-0	Plug Housing	Silver	Backshell Cable Clamp Coupling Nut Rotatable	Zinc Die Cast	-20 C	130 °C	Nickel	Free Hanging (In-Line) Right Angle	Circular	Shielded	For Female Sockets	1 Backshell 1 Cable Clamp 1 Connector	Push-Twist	19	Contacts Not Included	Keyed	IP66/IP67	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Cable Clamp, Coupling Nut, Rotatable
