140-510-415-101

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 10 P.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

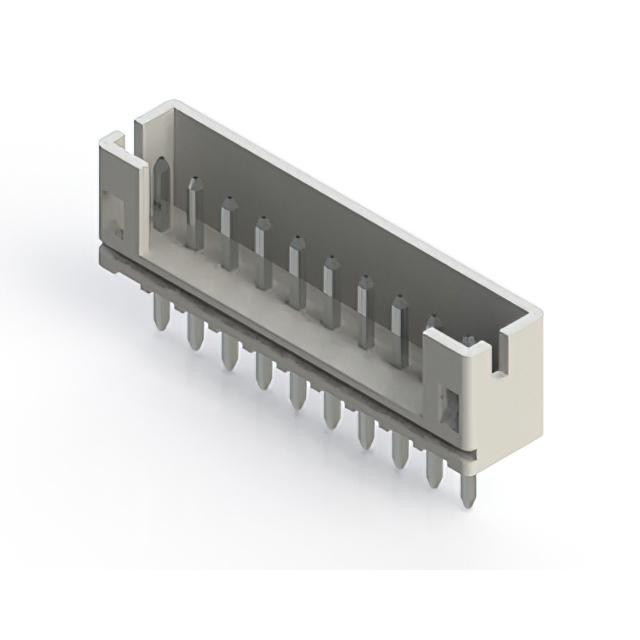

140-510-415-101

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 10 P.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140-510-415-101	140-510 Series

Color	-	Natural
Connector Type	Header	Header, Receptacle
Contact Finish - Post	Tin	Tin
Contact Length - Post	-	0.134 in
Contact Length - Post	-	3.4 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Termination	-	Crimp
Contact Type	Male Pin	Male Pin, Female Socket
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	-	Solder Retention, Polarizing Key
Insulation Color	Natural	Natural
Insulation Height	0.24 in	0.185 - 0.24 in
Insulation Height	6.1 mm	4.7 - 6.1 mm
Insulation Height	-	5.51 mm
Insulation Height	-	0.217 in
Insulation Material	Polyamide (PA66), Nylon 6/6	Liquid Crystal Polymer (LCP), Polyamide (PA9T), Nylon 9T, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Surface Mount, Surface Mount, Right Angle, Through Hole, Right Angle, Through Hole, Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	10	10
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder, Kinked Pin, Solder
Voltage Rating	100 VAC	100 VAC

140-510 Series

PIN HEADER, WIRE-TO-BOARD, 2 MM, 1 ROWS, 10 CONTACTS, SURFACE MOUNT STRAIGHT, 140 SERIES

Part	Style	Insulation Color	Contact Shape	Insulation Material	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Features	Number of Positions	Insulation Height [custom]	Insulation Height [custom]	Voltage Rating	Contact Material	Connector Type	Mounting Type	Current Rating (Amps)	Fastening Type	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Contact Finish - Post	Contact Type	Termination	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Note	Pitch [x]	Pitch [x]	Contact Termination	Color
EDAC Inc. 140-510-417-011	Board to Cable/Wire	Natural	Square	Liquid Crystal Polymer (LCP)	1	-40 °C	105 ░C	All	Solder Retention	10	5.51 mm	0.217 in	100 VAC	Brass	Header	Surface Mount	2 A	Detent Lock	UL94 V-0	0.079 in	2 mm	Shrouded - 4 Wall	Tin	Male Pin	Solder
EDAC Inc. 140-510-417-060	Board to Cable/Wire	Natural	Square	Nylon 9T, Polyamide (PA9T)	1	-25 °C	85 °C	All	Solder Retention	10	5.51 mm	0.217 in	100 VAC	Brass	Header	Surface Mount, Right Angle	2 A	Detent Lock	UL94 V-0	0.079 in	2 mm	Shrouded - 4 Wall	Tin	Male Pin	Solder
EDAC Inc. 140-510-415-100	Board to Cable/Wire	Natural	Square	Polyamide (PA66), Nylon 6/6	1	-40 °C	105 ░C	All		10			100 VAC	Brass	Header	Through Hole, Right Angle	2 A	Detent Lock	UL94 V-0	0.079 in	2 mm	Shrouded - 4 Wall	Tin	Male Pin	Solder	0.185 in	4.7 mm	0.134 in	3.4 mm
EDAC Inc. 140-510-415-101	Board to Cable/Wire	Natural	Square	Polyamide (PA66), Nylon 6/6	1	-40 °C	105 ░C	All		10			100 VAC	Brass	Header	Through Hole	2 A	Detent Lock	UL94 V-0	0.079 in	2 mm	Shrouded - 4 Wall	Tin	Male Pin	Solder	0.24 in	6.1 mm
EDAC Inc. 140-510-210-011				Polyamide (PA66), Nylon 6/6	1	-25 °C	85 °C		Polarizing Key	10					Receptacle	Free Hanging (In-Line)		Detent Lock						Female Socket						Contacts Not Included	0.079 in	2 mm	Crimp	Natural
EDAC Inc. 140-510-415-001	Board to Cable/Wire	Natural	Square	Polyamide (PA66), Nylon 6/6	1	-40 °C	105 ░C	All		10			100 VAC	Brass	Header	Through Hole	2 A	Detent Lock	UL94 V-0	0.079 in	2 mm	Shrouded - 4 Wall	Tin	Male Pin	Kinked Pin, Solder	0.24 in	6.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.14

Description

General part information

140-510 Series

Connector Header Through Hole 10 position 0.079" (2.00mm)
